NaviaTec Barcode Reader 2015NaviaTec Barcode Reader 2015

2015 Barcode Reader

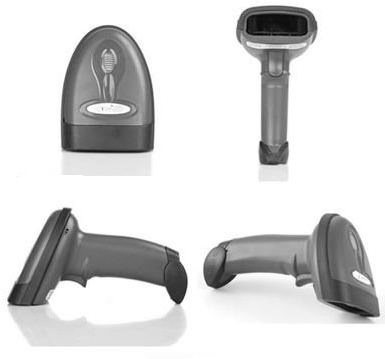

NaviaTec Bar Code Reader 2015


NaviaTec Barcode Reader 2015

POS Laser scanner Automatic function
Auto ON when close to product

Stand Included

Technical parameters

Source Type: 650nm laser
Error rate: 1 / 100 million
Connector Type:
Bar Code Types: Code39, Full ASCII, Codabar, Industrial 2of5, Interleave 2of5, Matrix 2of5, Code 93, Code 128, Code 32, Standard Code 39, EAN 128, MSI, EAN 8&13, UPC-A, UPC-E, Plessay, DataBar14, TELEPE
Scan Trigger: Manual
(pcs0.9) 0.10mm (4 mil)
Read Width: 60mm at 30mm (from object); 98mm at 100mm (from the object)
Depth: 10-420mm (pcs0.9, density0.25)
Reading Speed: 78 times / sec
Reading accuracy: 0.10-0.825mm
Reading Distance: 10-520mm
Read the angle of elevation: 60 deg
Reading angle: 45 deg
Operating termperature: -20C – 45C
Storage temperature: -20C – 45C
Operating humidity: 5%-85%
Storage Humidity: 5% – 85%
Power: 5V
Operating Current: 120mA
Quiescent Current: 30mA
By light intensity: Daylight 3.000 luX max

Product Documentation

barcode 2015 setup
