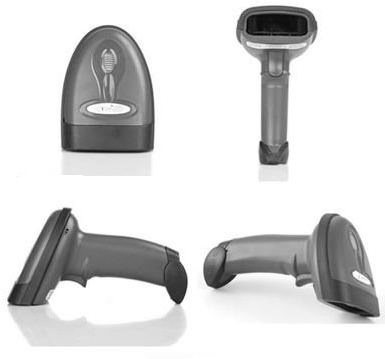

2015M Barcode Reader

NaviaTec Bar Code Reader 2015M


NaviaTec Barcode Reader 2015M

POS Laser scanner Automatic function
ManualĀ  ON controll

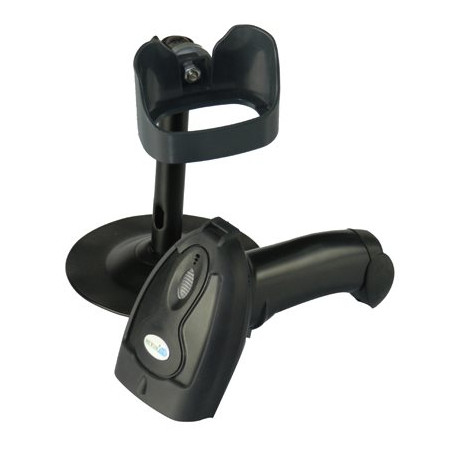

Stand Included

Technical parameters

Source Type: 650nm laser
Error rate: 1 / 100 million
Connector Type:
Bar Code Types: Code39, Full ASCII, Codabar, Industrial 2of5, Interleave 2of5, Matrix 2of5, Code 93, Code 128, Code 32, Standard Code 39, EAN 128, MSI, EAN 8&13, UPC-A, UPC-E, Plessay, DataBar14, TELEPE
Scan Trigger: Manual
(pcs0.9) 0.10mm (4 mil)
Read Width: 60mm at 30mm (from object); 98mm at 100mm (from the object)
Depth: 10-420mm (pcs0.9, density0.25)
Reading Speed: 78 times / sec
Reading accuracy: 0.10-0.825mm
Reading Distance: 10-520mm
Read the angle of elevation: 60 deg
Reading angle: 45 deg
Operating termperature: -20C – 45C
Storage temperature: -20C – 45C
Operating humidity: 5%-85%
Storage Humidity: 5% – 85%
Power: 5V
Operating Current: 120mA
Quiescent Current: 30mA
By light intensity: Daylight 3.000 luX max

Product Documentation

barcode 2015 setup
