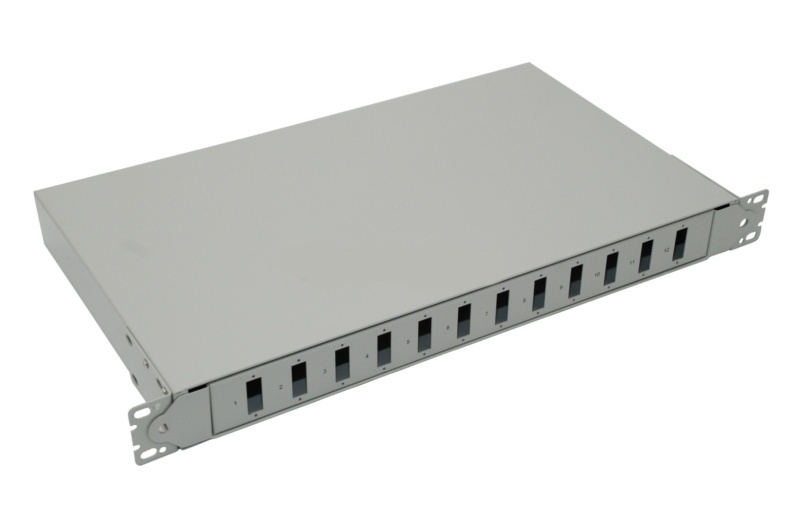

NFO Patch Panel 1U 19″ – 12x SC Duplex, Slide-out on rails, 1 tray

SKU: NFO-PAN-60019 Category:

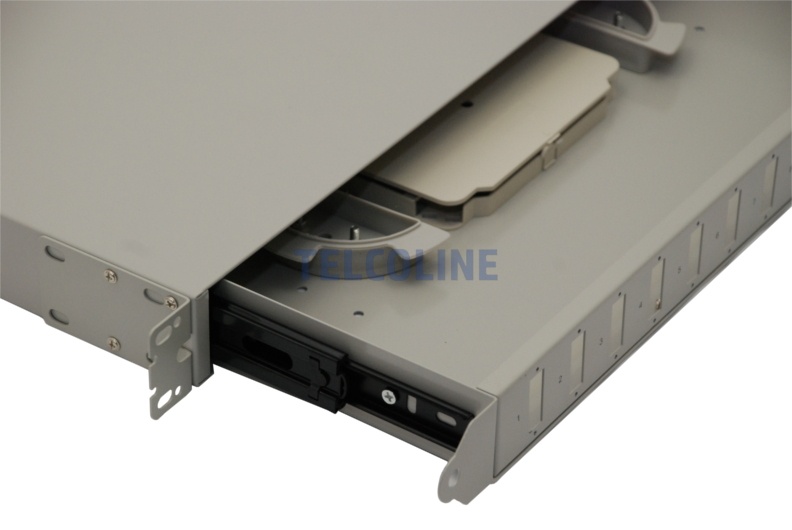

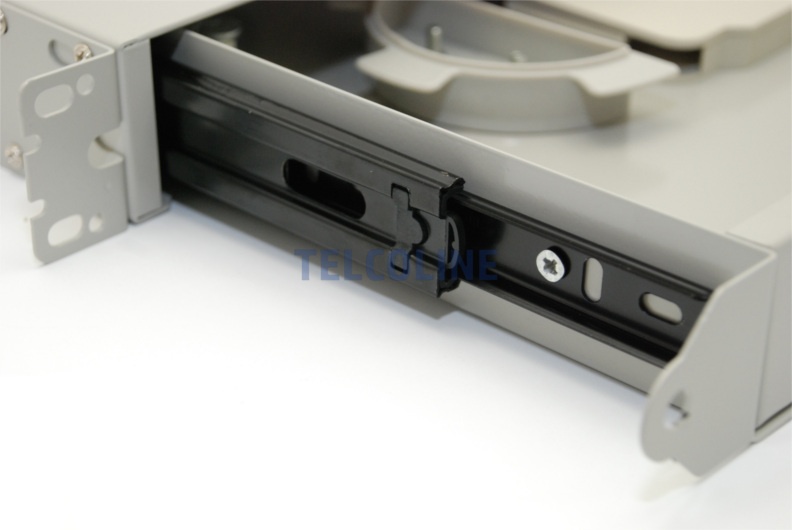

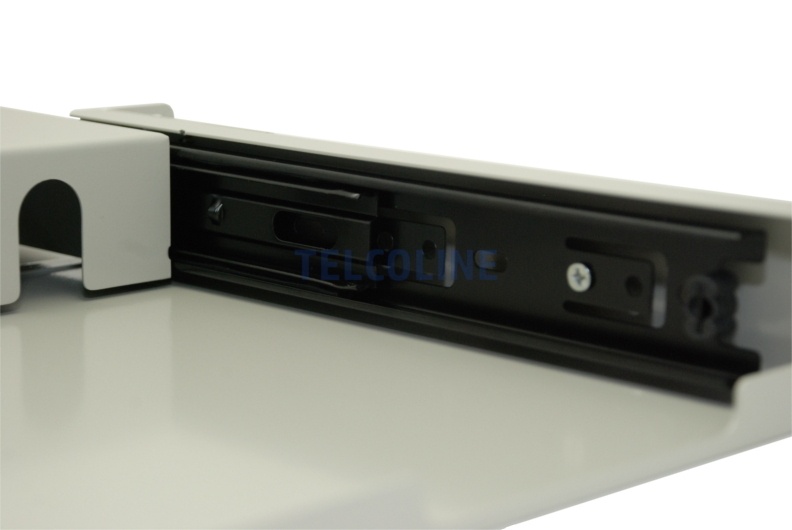

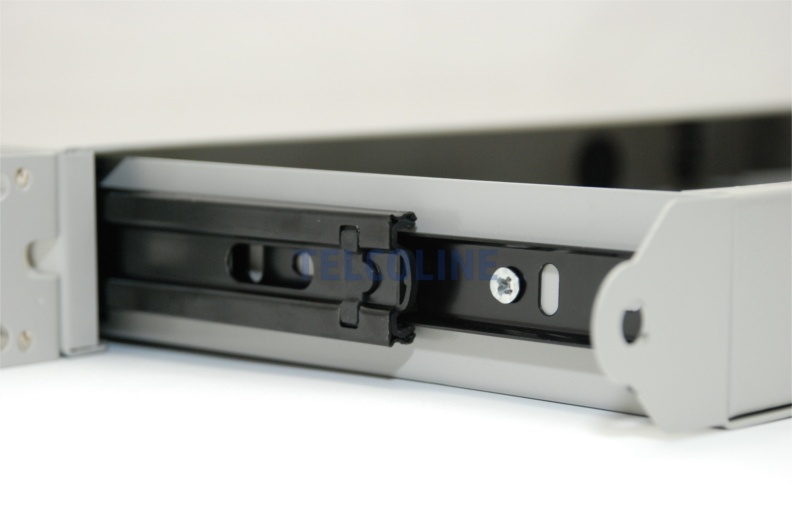

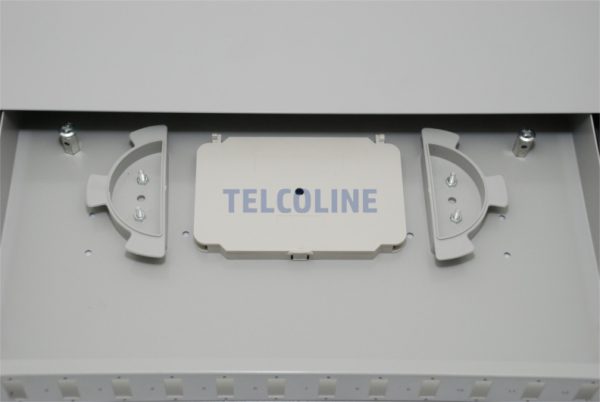

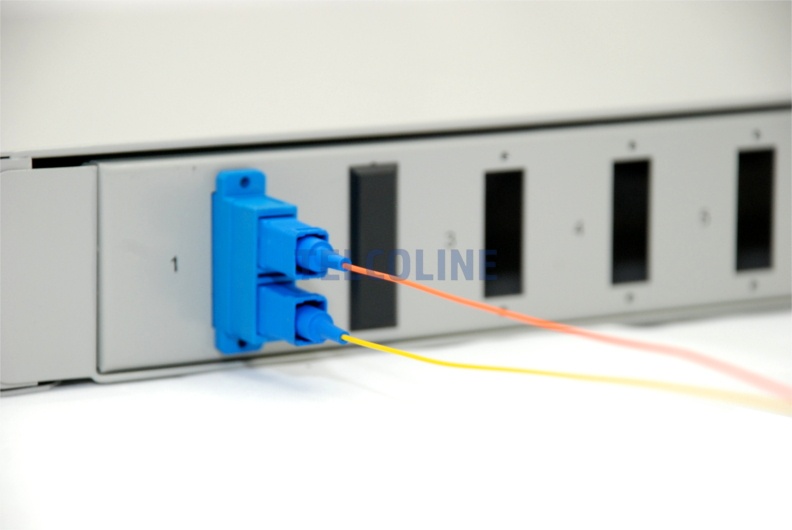

The Telcoline 24F – 19 “/ 1U fiber optic distribution box is designed for mounting in 19″ telecom cabinets (standing, hanging), it allows to install 12 SC Duplex adapters, equipped with a cable organizer and a fiber optic tray, on the back there are 4 holes for Introduction and delivery of fiber optic cables The switchboard is equipped with a solid rail system allowing the drawer to be pulled out, allowing free access to the interior.The switch is universal and will be used in telecommunications equipment and server rooms

Technical data:
– Weight: 2 kg
– Number of trays: 1

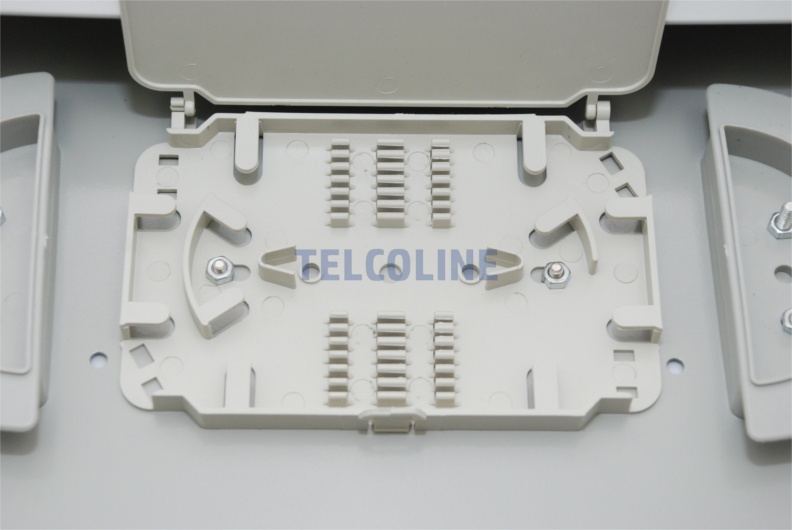

– Tray capacity: 12/24 welds
– Maximum number of adapters: 24 (SC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 3
– Dimensions: – Mounting height: 1U (44.45 mm)
– Depth: 250 mm
– Method mounting (length): 19 ” profile

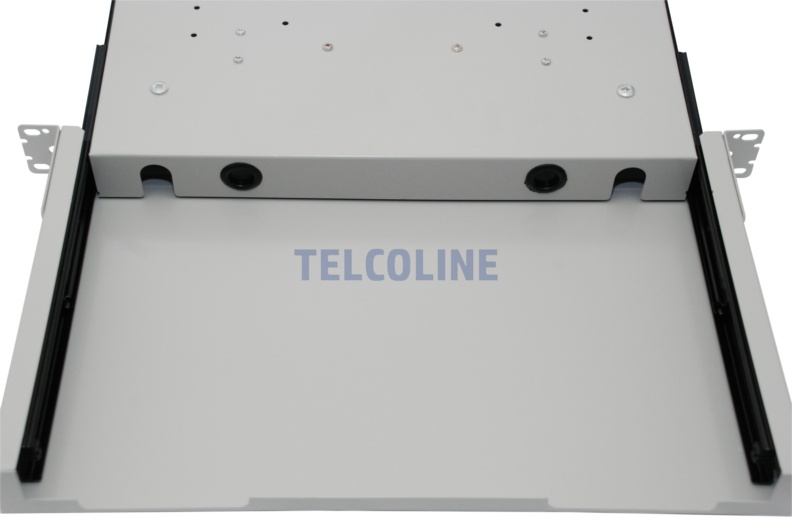

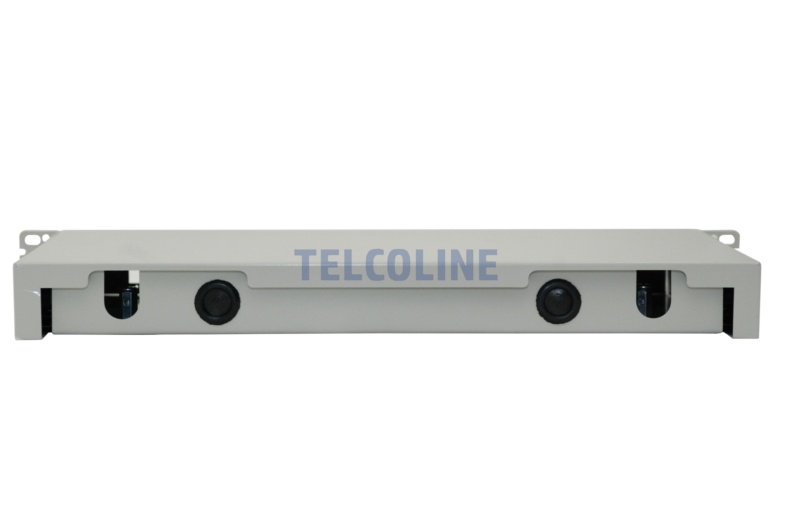

– Diameter of openings on the back: 20 mm

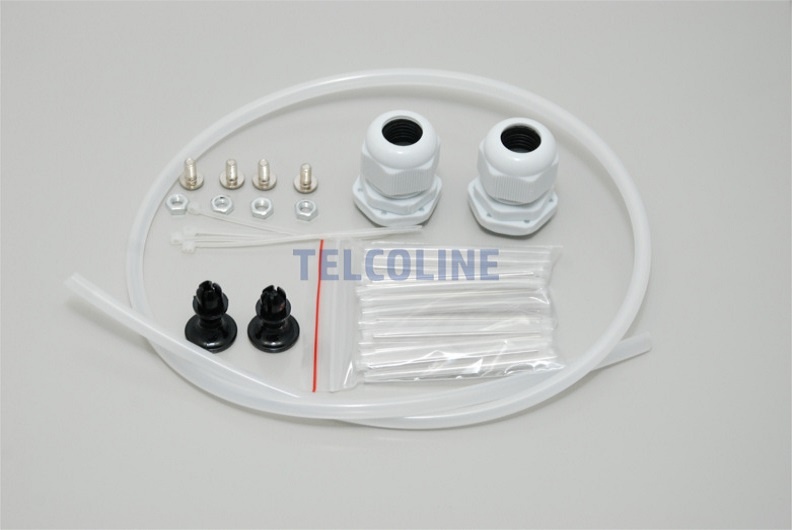

Supplied with:

Optical tray – Cable glands: 2 x PG.13.5
– Splice covers : 24
– Mounting screws for adapters: 24
– Plastic cable ties: 4
– Elements (bolts) blocking the extension: 2
