5802LD Bluetooth POS Printer

58mm POS Thermal Bluetooth 5802LD
Code
NTC-5802LD
Compare
Category:

Description

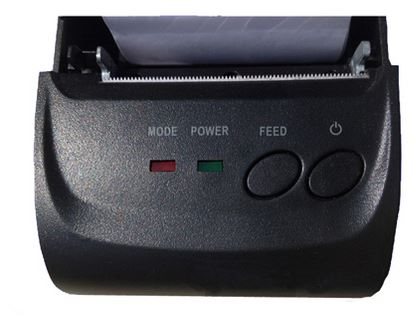

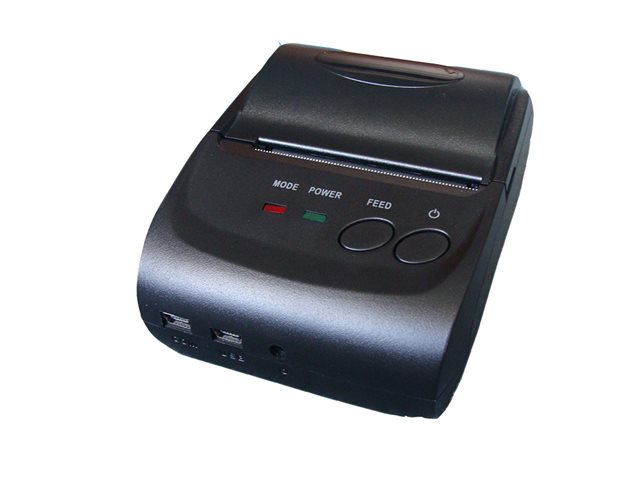

NaviaTec 58mm POS Thermal Printer Bluetooth 5802LD

Product Name: Thermal Bluetooth Receipt Printer

It applies mobile products to supporting the use, and suited to outdoor work environments.

The feature has small size、light weight、reliable performance、simple to connect、 easy to use.

Applications:

The mobile police system

The tobacco distribution system

The utility meter reading system

The mobile office / mobile logistics systems

The portable instrumentation

The testing equipment, ancillary equipment.

Low operating costs (no ribbons, ink cartridges)

Weight: about 400g (including accessories:  lithium-ion batteries, cable, test paper)

Size: 103.5*78*45.5mm

Printing Method: Thermal line printing

Print speed: 90mm/sec

Reliability TPH Life: 100km

Resolution: 203DPI (8dot/mm)

Printing Width: 48mm (384dot)

Paper Width: 58±01mm

Roll Diameter: φ≤40mm

Paper Type: Thermal Paper

Power supply (optional): rechargeable lithium batteries

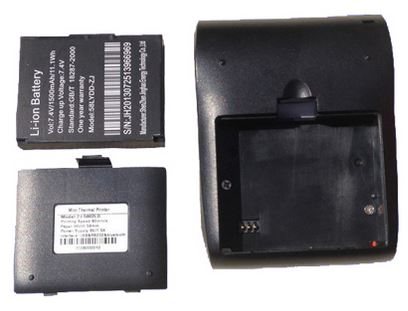

Battery: Lithium: 7.4VDC/1500mA,

Charging mode: DC 9V/1.5A

Support the battery display function

Print parameters: support to download the Logo trademark

 Character size:

                      The 384 – point/line
The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm
The Font B:  9 *17points, 1.1(wide) * 2.1  (high) mm
Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm

Printing Chinese character:     Chinese: simplified Chinese 24×24 point. support 18030 font library,

support Taiwan and HK traditional(complex font)

ANK: ANK characters

Extended character table:

OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/

OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

Emulation: ESC/POS/STAR command

Interface: standard RS232/USB, Bluetooth 2.0/SPP agreement or infrared/IRCOMM agreement (optional).

Barcode Types: UPC-A/UPC-E/JAN13(EAN13)/ JAN8(EAN8)CODABAR/ITF/ CODE39/CODE93/CODE128/QR.CODE

Working Temperature: -10~50℃

Driver:Win 9X /Win 2000 /Win 2003/Win XP/Win Vista/Win 7 /Win8/Win10/Linux

Humidity: 10~90%
