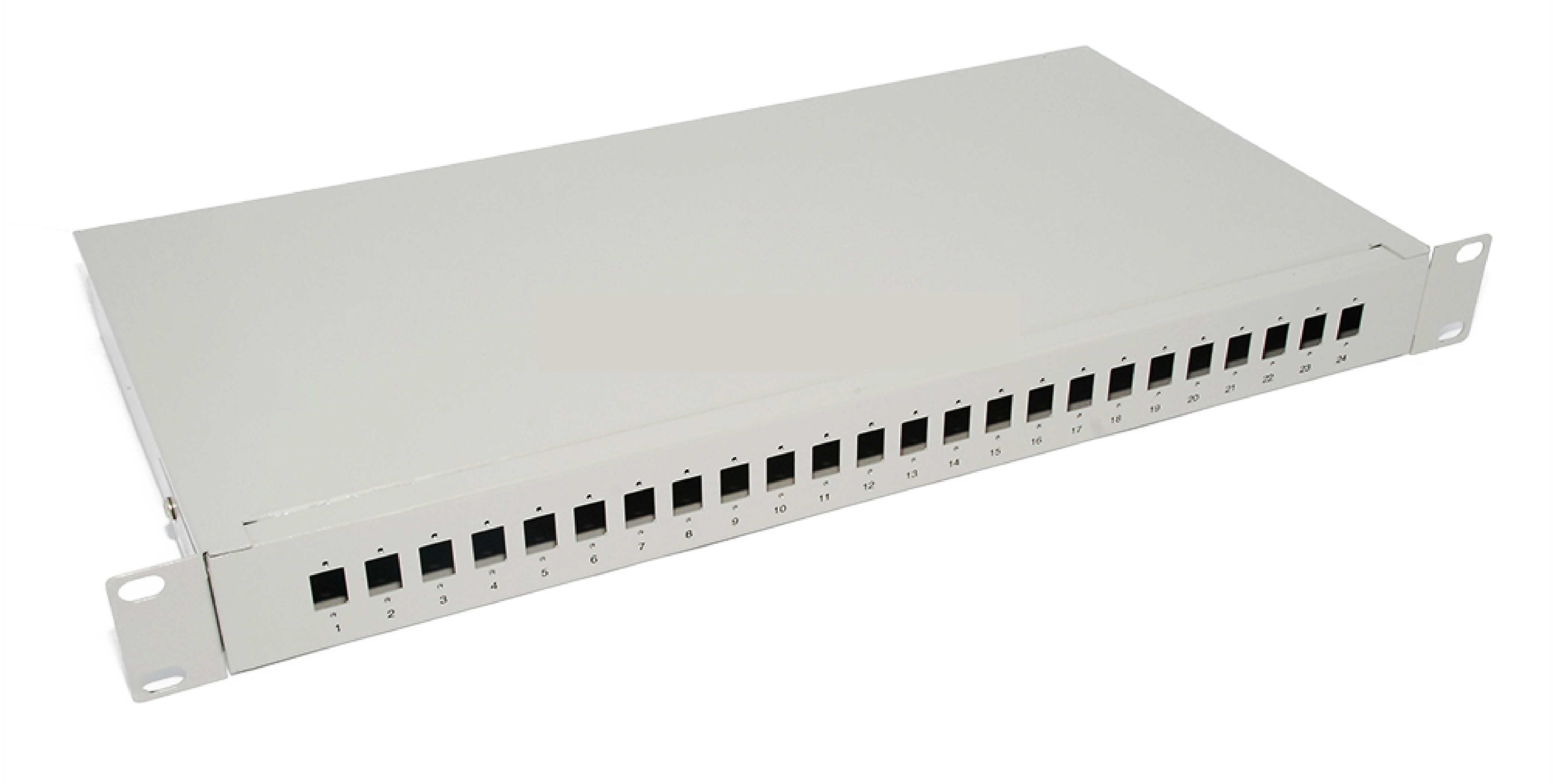

NFO Patch Panel 1U 19″ – 12 SC Simplex/LC Duplex, Closed, 1 cassette

SKU: NFO-PAN-60002 Category:

Description

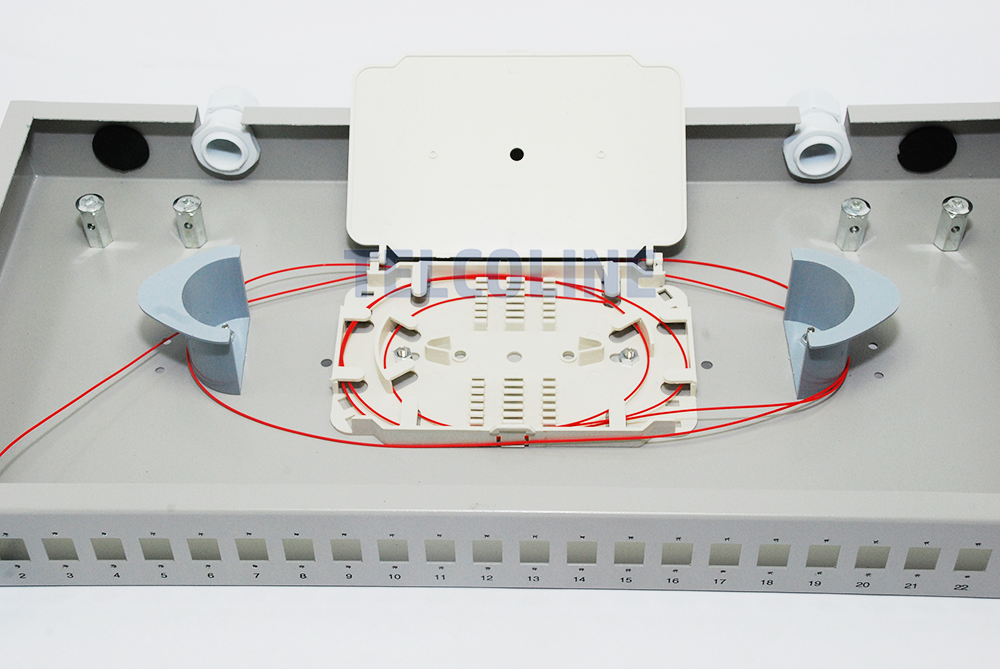

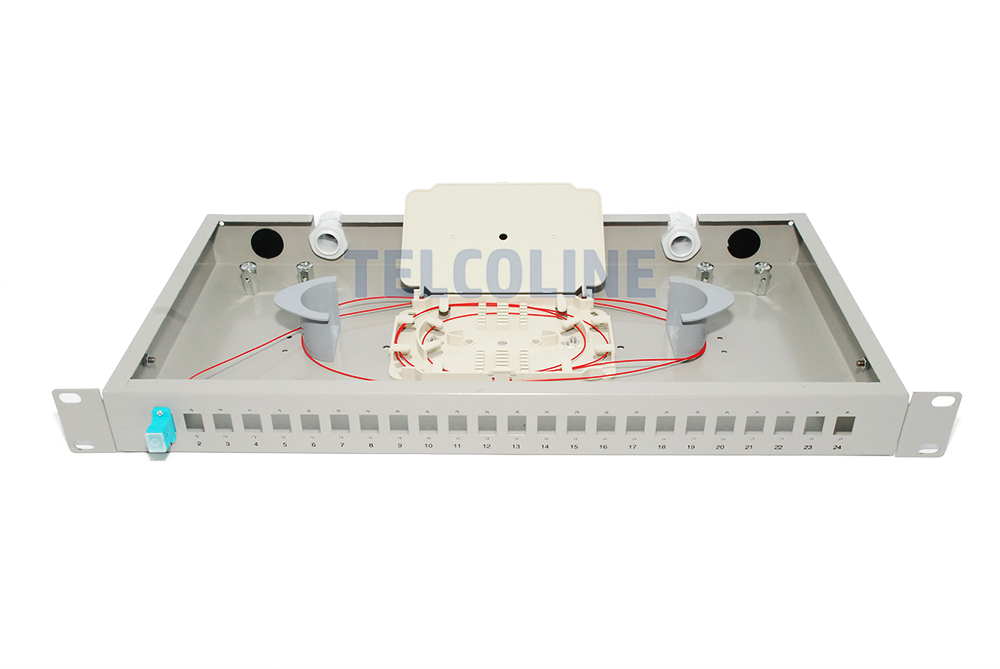

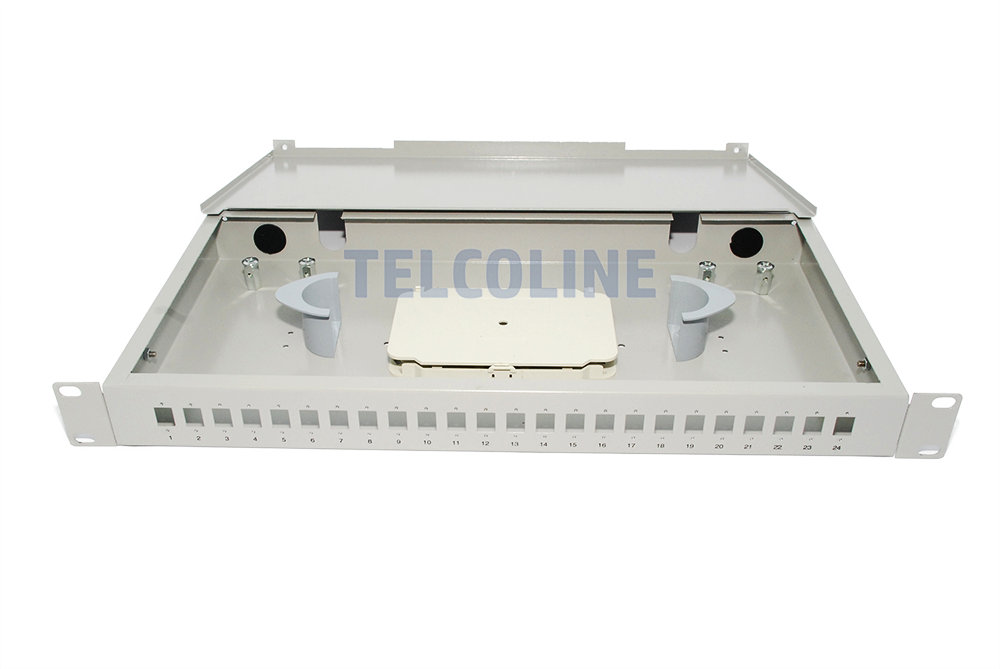

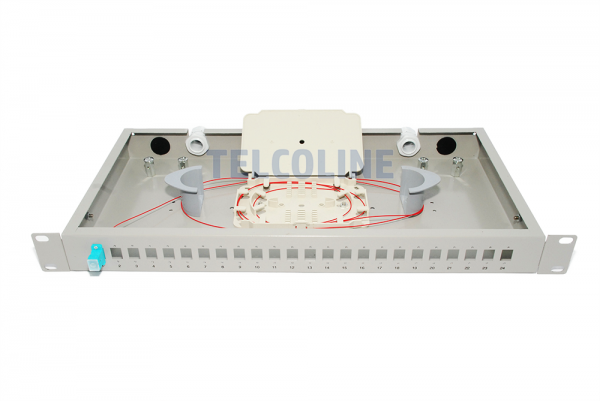

1U / 19 “24F / 24xSC Simplex, The rack mounted switchboard  is designed for mounting in 19-inch data communication cabinets (standing, hanging), the switch allows to install  24  SC Simplex or LC Dublex adapters, equipped with a cable organizer and a fiber-optic tray. the wall has 2 openings that are plugged with rubber gaskets and 2 holes for PG13.5 cable glands (with height adjustment), intended for the introduction and output of fiber optic cables The switch is universal and will be used in telecommunications equipment and server rooms

Application:
• Server rooms
• Fiber optic distributors

Technical Data:
• Weight: 2 kg
• Number of trays: 1
• Tray capacity: 12/24 welds
• Maximum number of adapters: 24   (SC Simplex, LC Duplex)
• Maximum number of trays: 3
• Material: Cold-rolled steel – powder coated  light gray
• Dimensions: Installation height: 1U (44, 45 mm), Depth: 250 mm, Mounting method (length): 19 ” profile

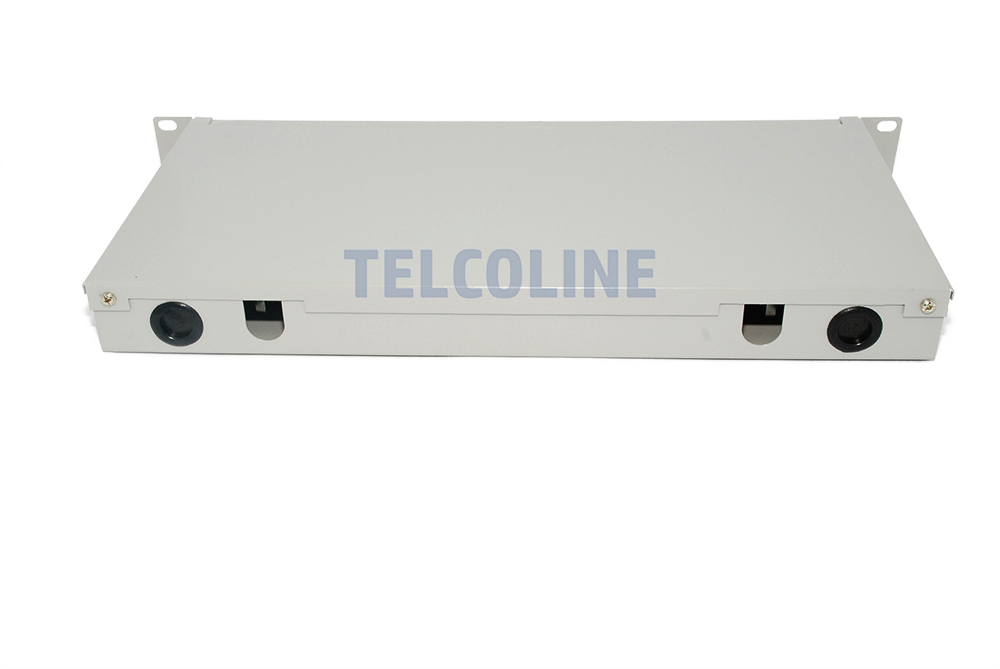

• Diameter of holes on back plate: Rubber 2×20 mm, for Cable gland: 2 x PG.13.5

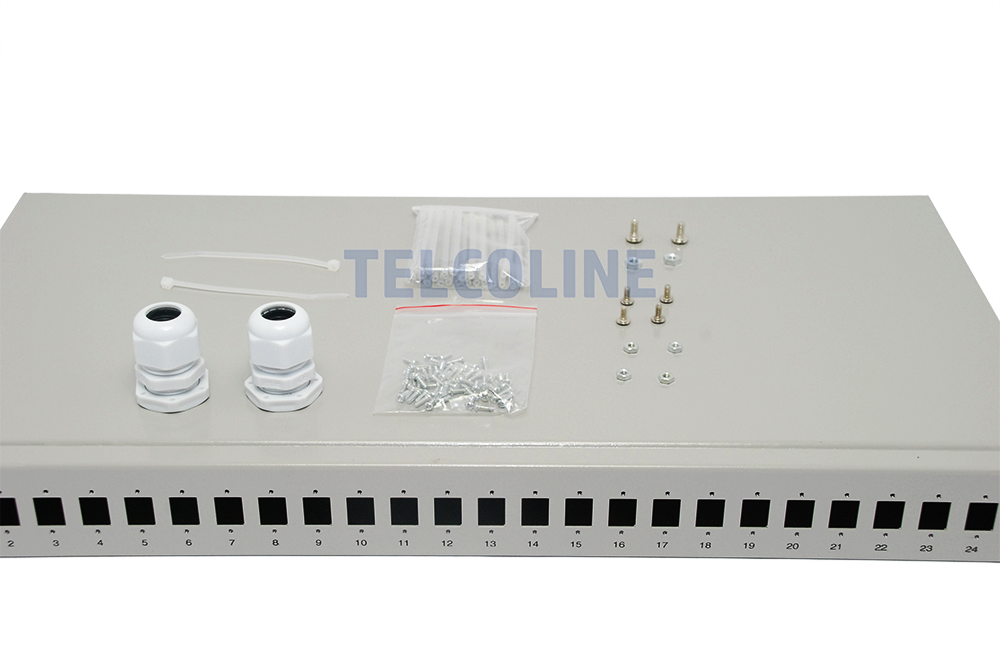

Kit components:
• One fiber optic tray
• Cable glands: 2 x PG.13.5
• Mounting screws for adapters: 38 pcs
• Plastic cable ties: 2 pcs
• Spare screws: 4pcs (small) and 2pcs (large)
• Spare nuts: 4pcs (small) and 2pcs (large)
• Splice shields: 1pack / 24pcs
