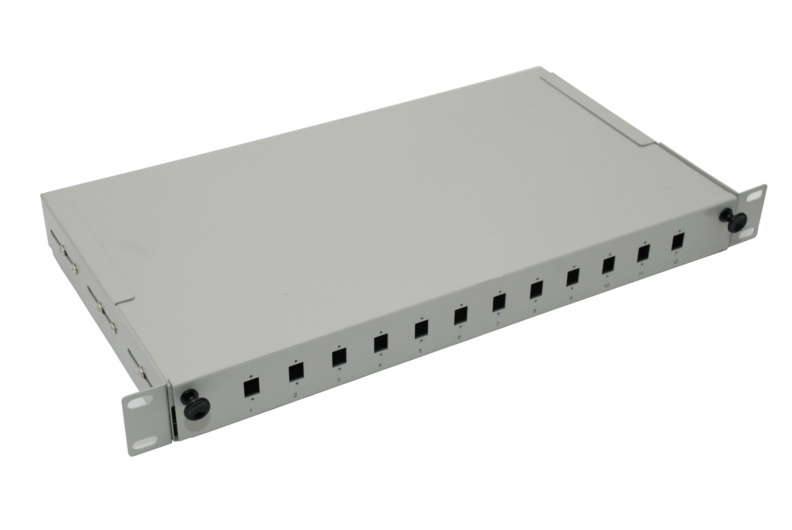

NFO Patch Panel 1U 19″ – 12x SC Simplex/LC Duplex, Pull-out, 1 tray

SKU: NFO-PAN-60021 Category:

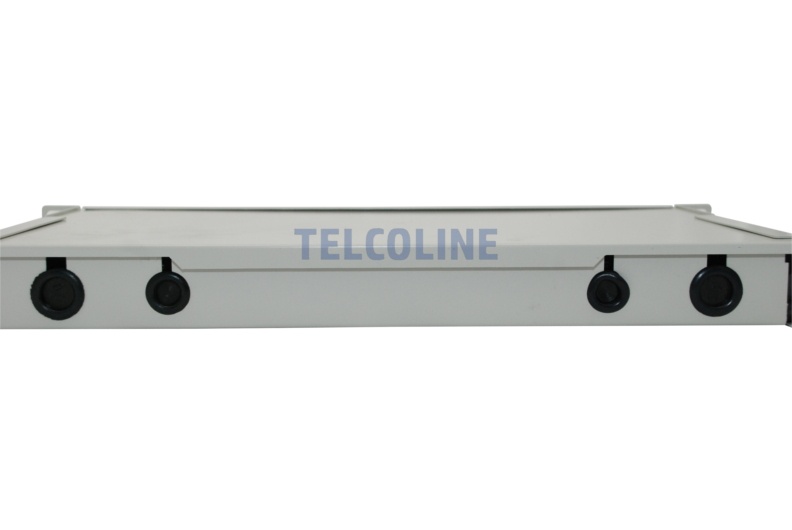

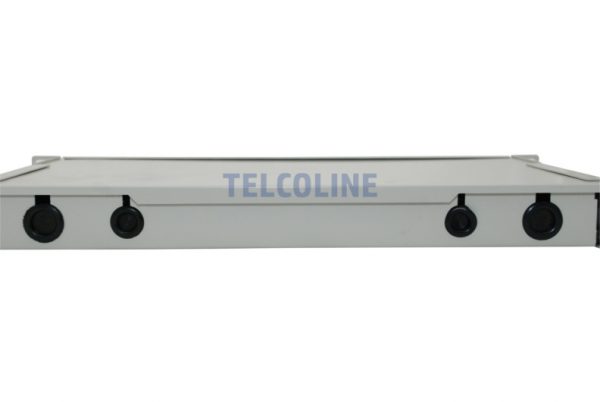

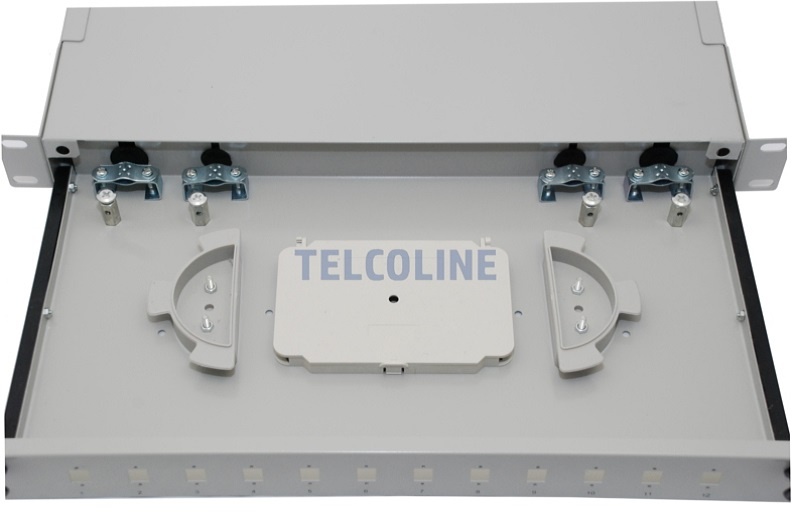

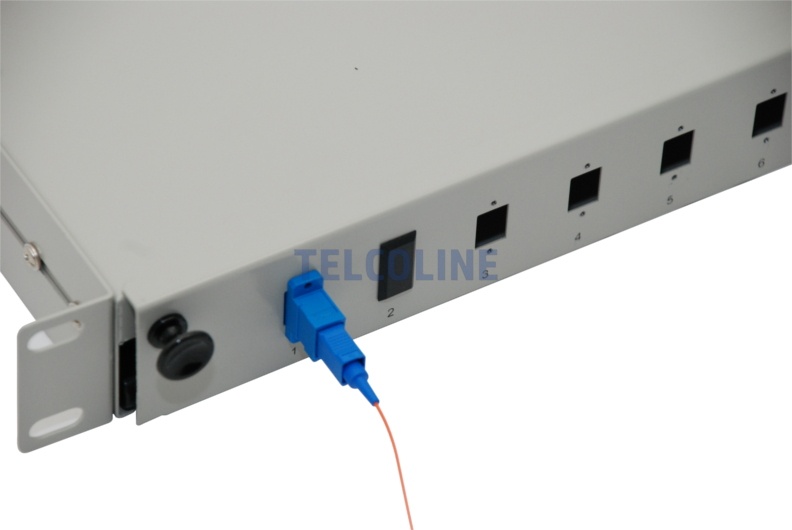

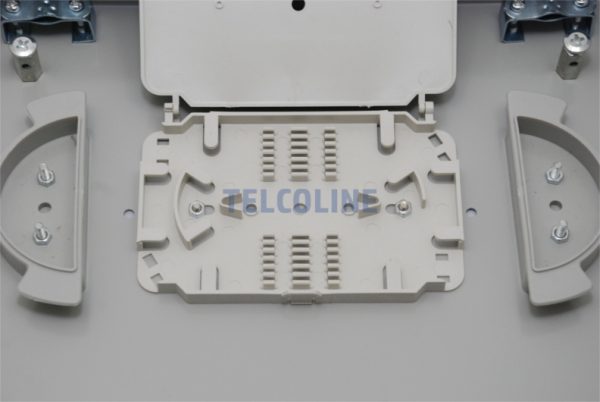

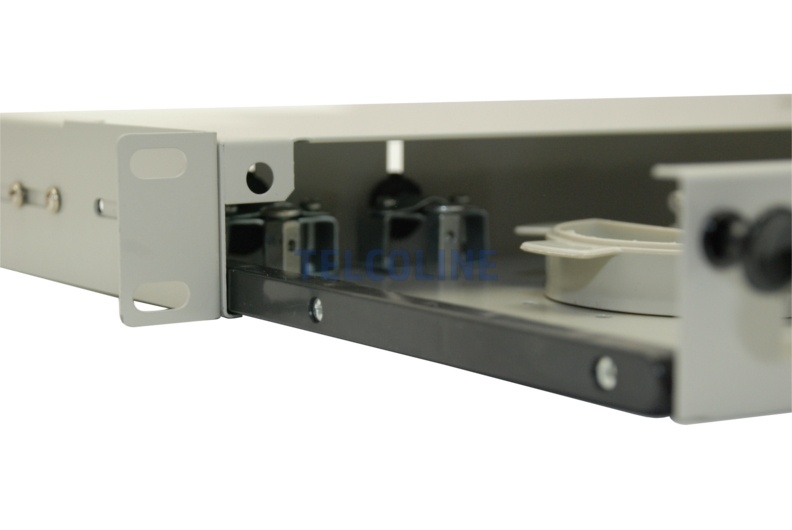

The Telcoline 12F – 19 “/ 1U fiber optic distribution box is designed for mounting in 19-inch IT cabinets (standing, hanging). It enables the installation of 12 SC Simplex or LC Duplex adapters . Equipped with cable organizer and fiber optic tray. There are 4 on the back openings for the insertion and exit of fiber optic cables. The switchgear is equipped with a pull-out and removable drawer for free access to the interior. The switchboard is universal and will be used in telecommunications equipment and server rooms.

Technical data:
– Weight: 2 kg
– Number of trays: 1
– Capacity trays: 12/24 welds
– Maximum number of adapters: 12 (SC Simplex, LC Duplex)
– Material: Cold rolled steel – powder painted light gray
– Maximum number of trays: 3
– Dimensions: – Mounting height: 1U (44.45 mm)
– Depth: 250 mm
– Mounting method (length): 19 ” profile

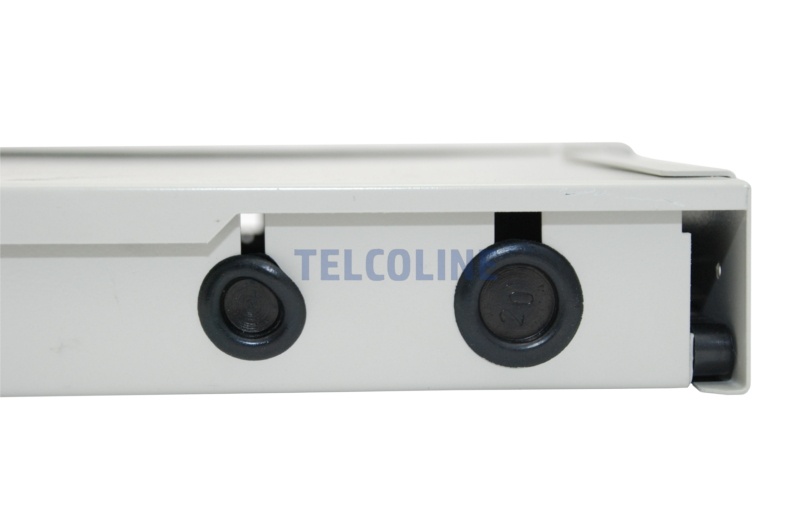

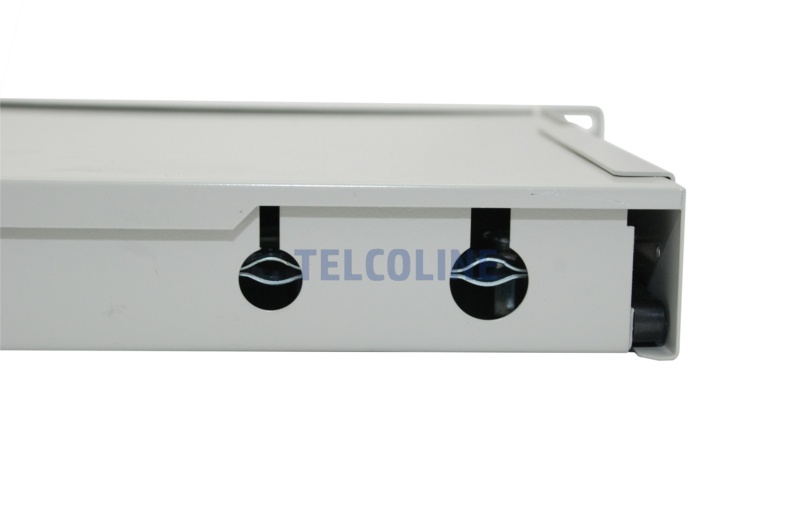

– The diameter of the holes on the back: 2×20 mm, 2×16 mm

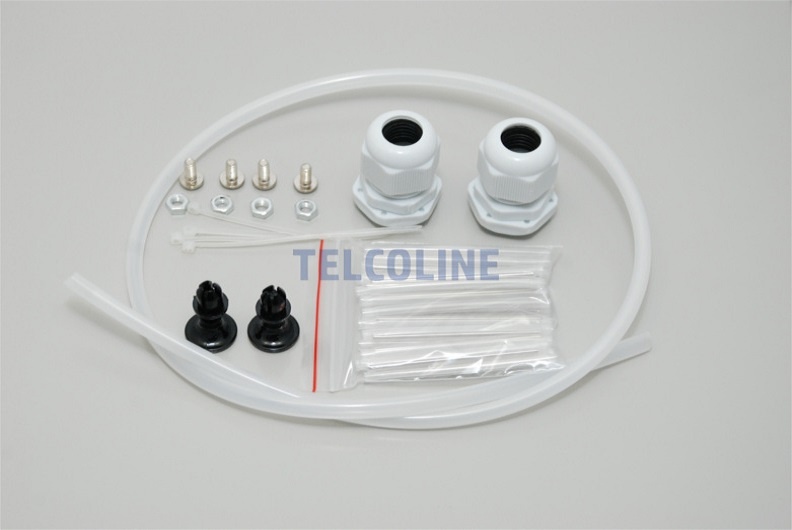

In the set:

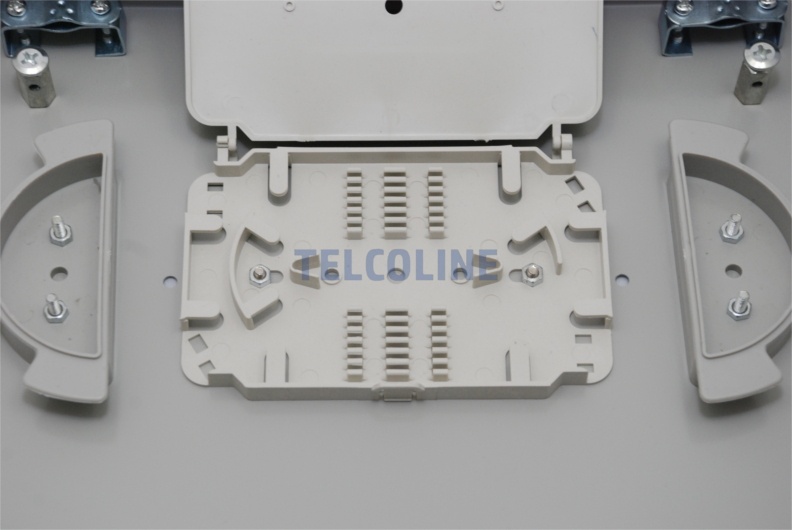

Fiber optic tray – Cable glands: 2 x PG.13.5
– Splice shields : 12
– Mounting screws for adapters: 24
– Plastic clamps: 4
– Locking elements (pins) extension: 2
