NVT-WCABxx-S3030NVT-WCABxx-S3030

10″ S3530 Series

10″ Wall Mount Network Cabinets

Compare

Description

NaviaTec 10″ S3530 Series

Feature:

  • Ideal for 10″ rackmount applications
  • Maximum static load of 60 kg

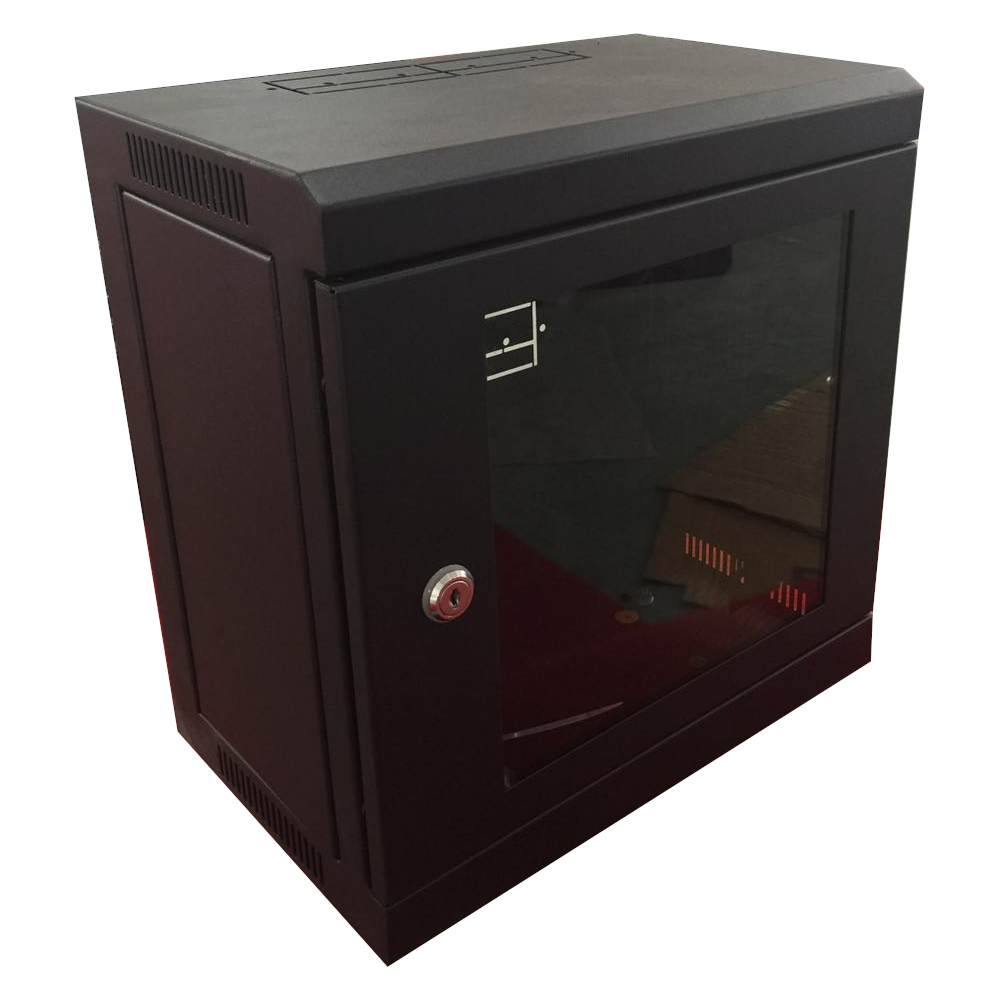

  • Tempered-glass door can be opened more than 180°

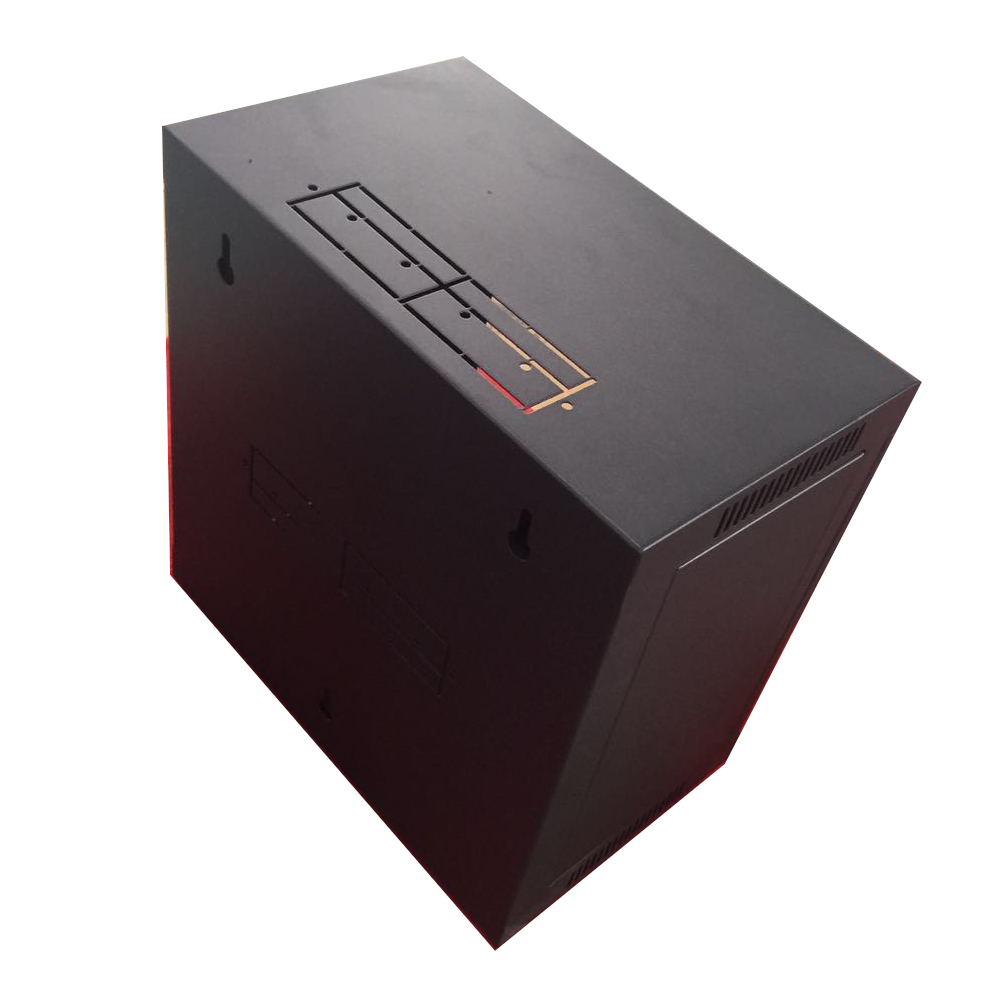

  • Cable entry via rear or top panel
  • Ships assembled
  • Weight: 6.7 kg

Standard:
Comply with ANSI/EIA RS-310-D, IEC60297-2, DIN41494, Part1, DIN41494, Part 7

Material:
SPCC Cold Rolled Steel up to 1.2 mm thickness

Color
Powder Paint: Black

Loading Capacity:
Static loading: up to 60kg

Specification:
Heights Available: 4U, 6U


Ordering Info:

Model No. U Width Depth Height Packing dimension EAN Code
NVT-WCAB4U-S3530B 4U 350 300 244 360*320*265 3856016516205
NVT-WCAB6U-S3530B 6U 350 300 320 360*320*340 3856016516212

Optional Accessories Sold Seperate:

Model No. Description
NVT-PDU007 10″ 1U 4x Shuko Outlet Power Distribution Unit
NVT-SH-CL2548-1U 10″ Wall Cabinet Shelf 1U
