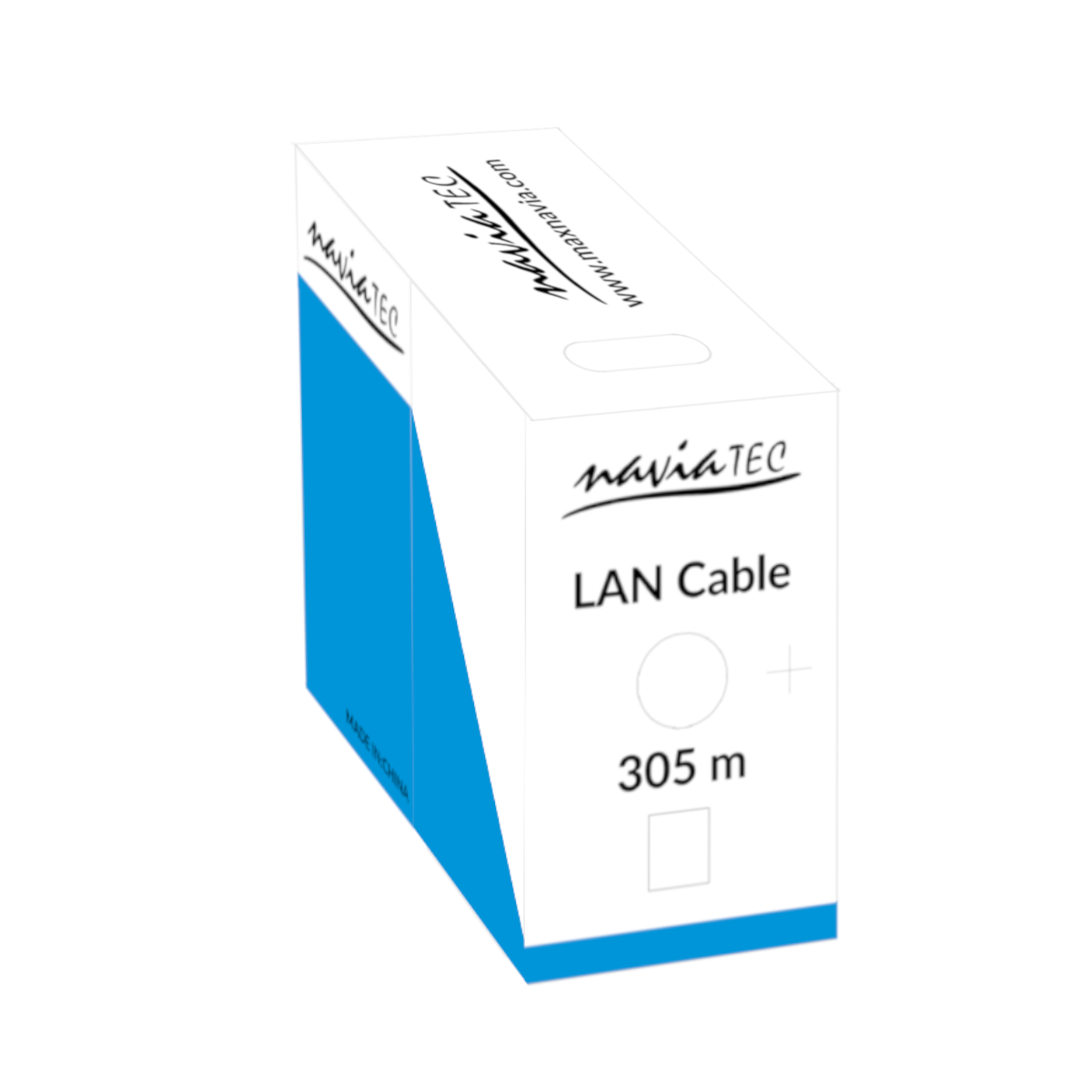

NaviaTec LAN Cable BOXNaviaTec LAN Cable BOX

Cat6 UTP Solid CU 305M

Category:

Description

NaviaTec Cat6 UTP Solid CU 305M

NaviaTec UTP unshielded CAT6 Twisted Pair Installation Cable

Color: Gray
Screen Type: UTP
Enclosure Type: PVC
Category: Cat6
Conductor: Solid Bare Copper 23AWG
Cable Type: Solid Wire
Cable Length: 305m
Total # of insulated conductors: 8, twisted in 4 pairs
Color Code: White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
Overall Diameter: 6.4±0.2

Electrical Characteristics
Impedence: 1-250MHz 100±15(Ohms)
Rated Temperature: 75C
DC Resistance Unbalance(%): Max 2.5
DC Resistance 20C: 8.4(Ohms/100m)
Pair to Ground Capacitance Unbalance: 330(pF/100M)
Insulation Resistance: >5000M*Km
Dielectric strength: DC 2500V 2S.

Application:
Meets or exceeds requirments of ANSI/TIA-568-C2 Category 6 and ISO 11801 2nd Edition Class E channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards.
Meets requirements of IEEE 802.3af and IEEE 802.3at for POE applications.
Third party tested to comply with ANSI/TIA/EIA-568-C.2.

Ordering Info:

Article # EAN Code
NVT-CAT6-BOX242 3856016513709
