144F Optical Cable ADSS144F Optical Cable ADSS

NFO Cable ADSS, SM, G.652D, 144 fiber, 12 tube, 15.6 mm diameter, 4kN, 5 km

Compare

Description

NFO-CBL-S90008

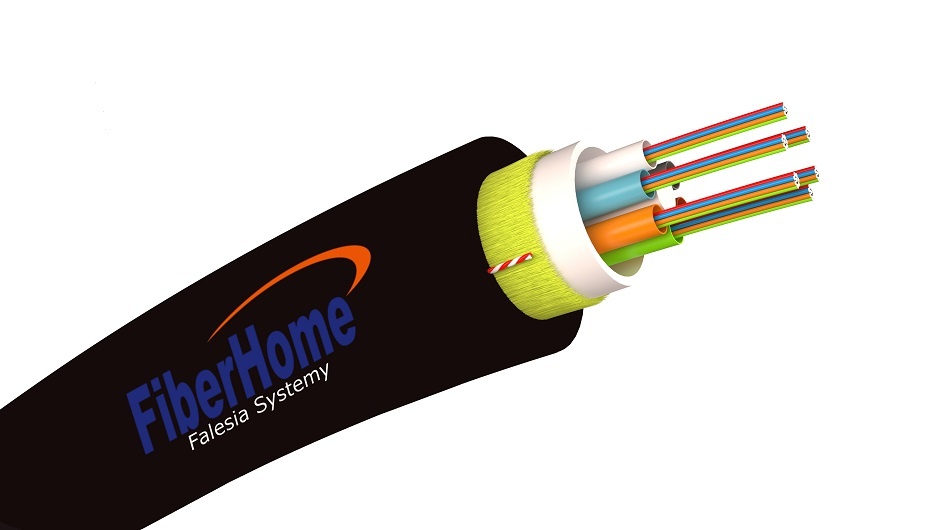

Very strong cable with multi-tube construction (12 fibers per tube) designed for overhead installations on spans up to 150 meters. It was reinforced with a central FRP rod (Fiber Reinforced Polymer) with a diameter of 3.3 mm and aramid fibers. Single-mode G.652D fibers have been used, which have a reduced “water peak” (Zero Water Peak). The cable is completely dielectric, characterized by very high tensile strength (maximum installation stress 4kN). The fibers are contained in tubes filled with a hydrophobic gel protecting them against moisture and vibrations. The outer shell is made of high-density HDPE polyethylene (black), resistant to UV radiation, as well as low and high temperatures (from – 30 [° C] to 70 [° C]). In addition, one ripcord was used to facilitate the removal of the outer sheath. In addition to overhead networks, the F-ADSS-MT-144J.4KN-12F cable will be successfully used in teletechnical sewage systems.

Data:
Fiber type: Singlemode
Fiber type: G.652D
Fiber number: 144
Number of tubes: 12 (12J / T)
Number of fillers: 0
Outside diameter: 15.7 mm
Minimum bending radius: 157 mm
Type of outer coating: HDPE
Weight: 185 kg / km
Maximum installation stress: 4 kN
Crushing strength: 2 kN
Operating temperature: from – 30 [° C] to 70 [° C]

Application:
– Overhead networks (bays up to 150 m)
– Teletechnical sewage system
