NFO Patch Panel 1U 19″ – 12 SC Duplex, Pull-out, 1 cassette included

SKU: NFO-PAN-60003 Category:

Description

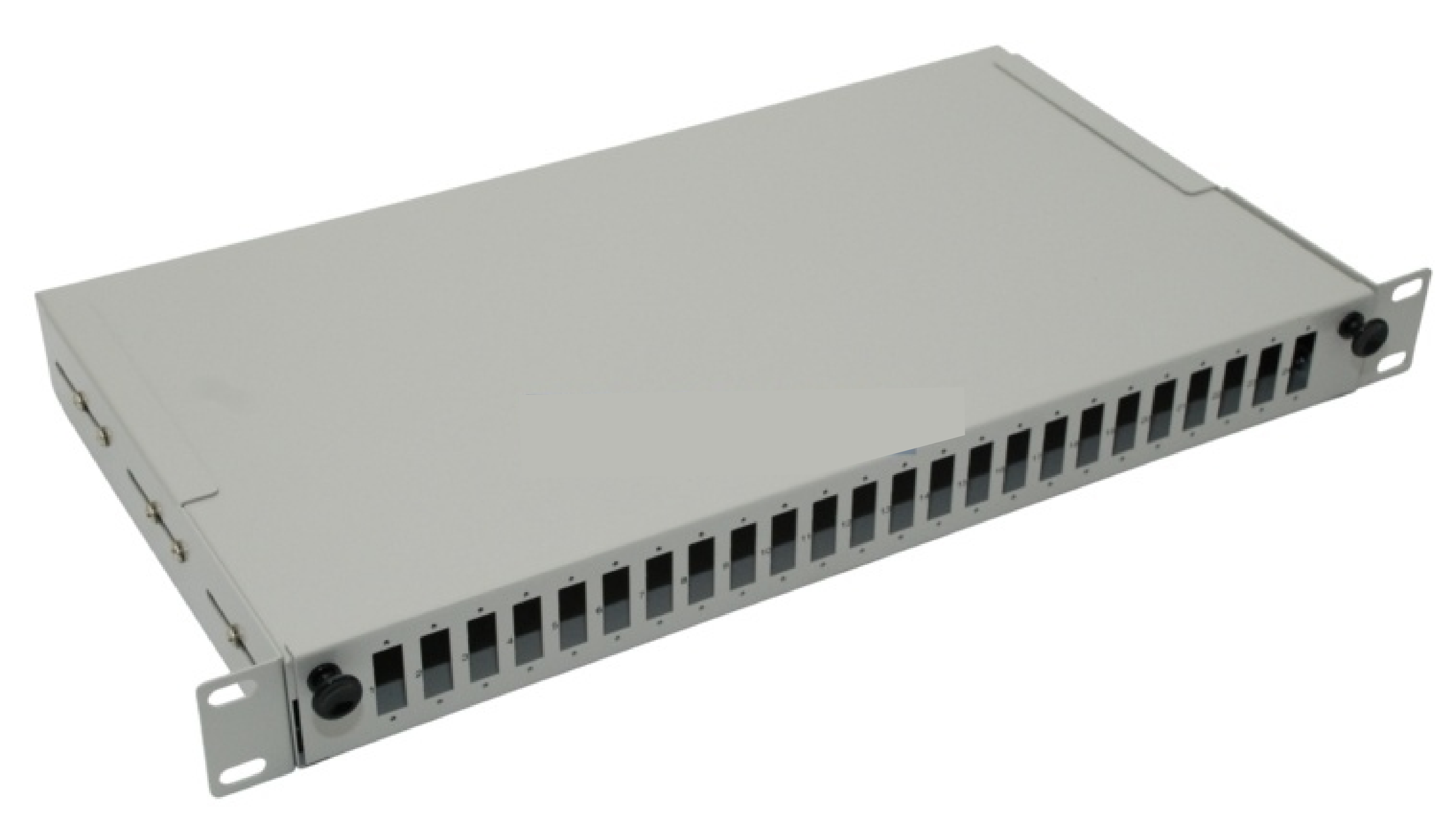

Telcoline 48F – 19 “/ 1U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), allows to install 24 SC Duplex adapters, equipped with a cable organizer and a fiber optic tray. The switch gear is equipped with a removable and removable drawer allowing free access to the interior.The switchboard is universal and will be used in telecommunications equipment and server rooms

Technical data:
– Weight: 2 kg
– Number of trays: 1
– Tray capacity: 12/24 welds
– Maximum number of welds: 48

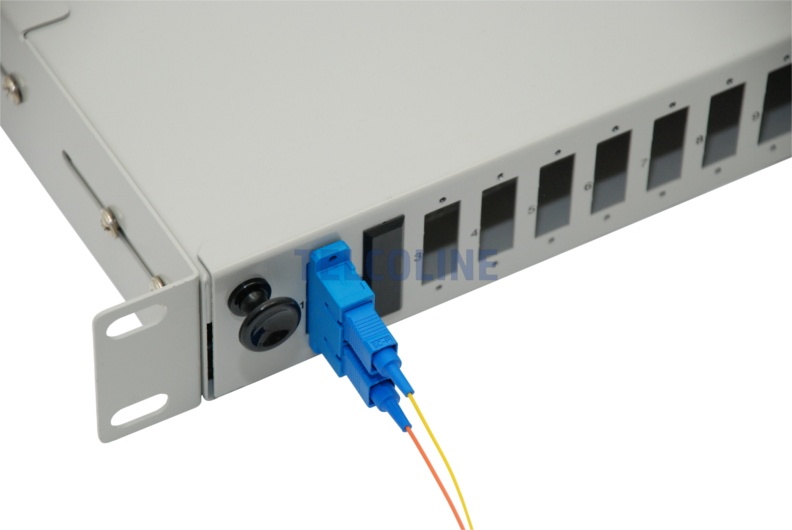

– Maximum number of adapters: 24 (SC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 3
– Dimensions: – Mounting height: 1U (44.45 mm)
– Depth: 250 mm
– Method assembly (length): 19 ” profile

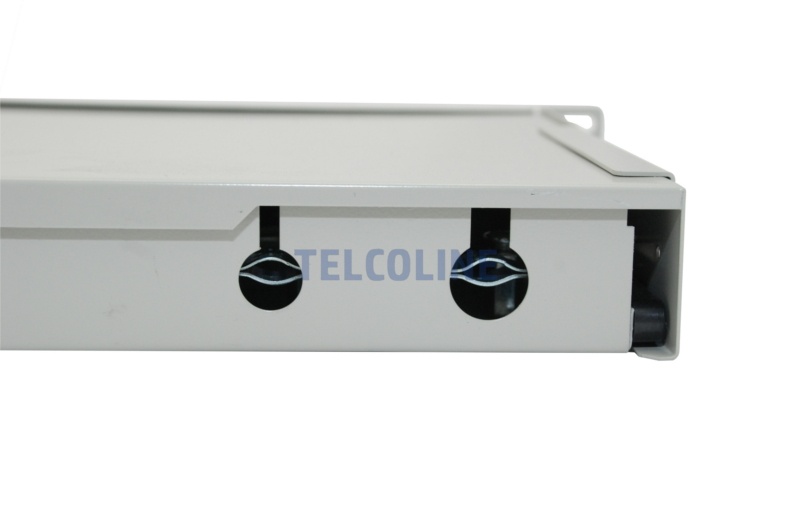

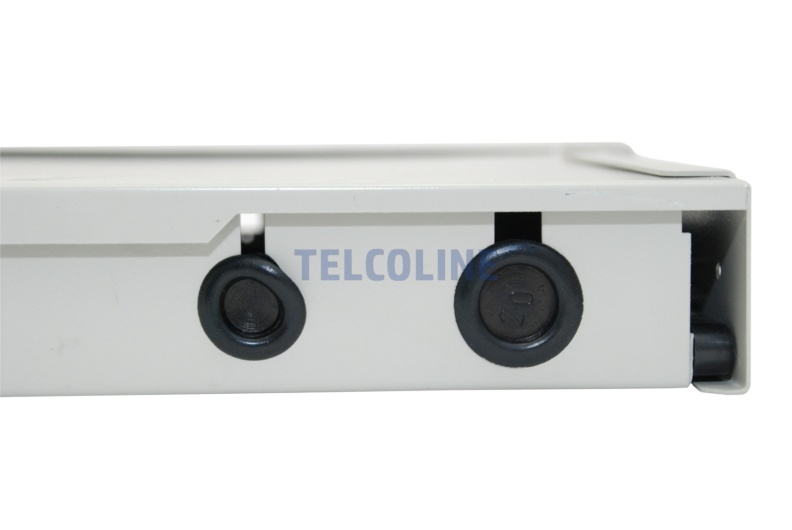

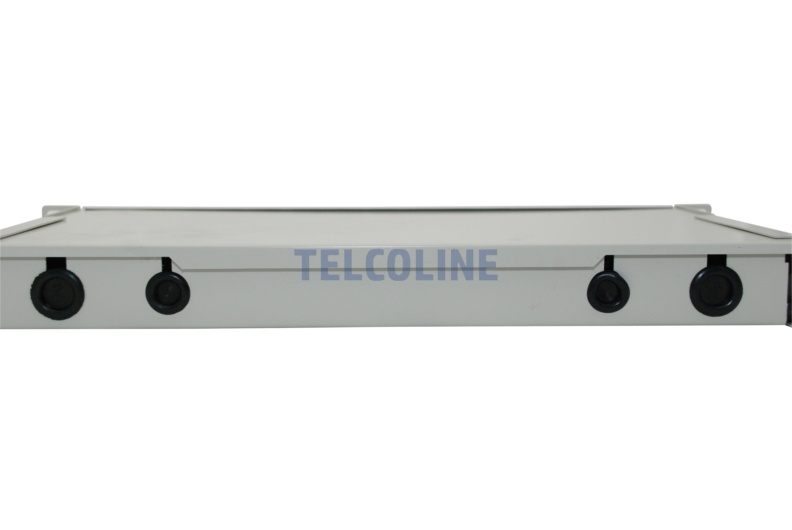

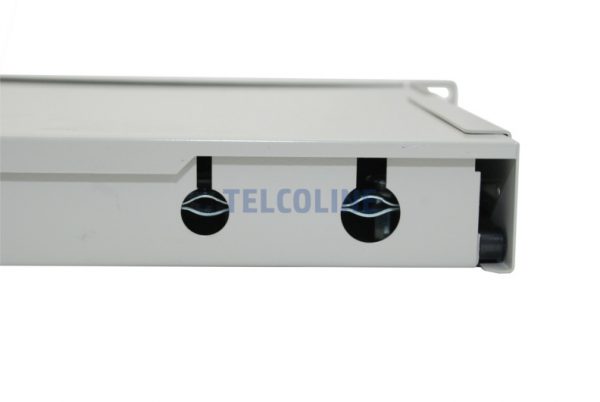

– Diameter of openings on back plate: 2×20 mm, 2×16 mm

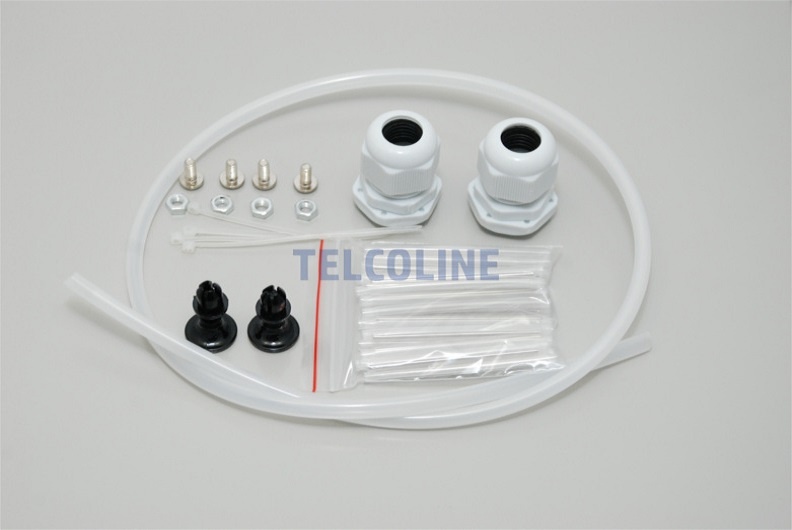

Supplied with:

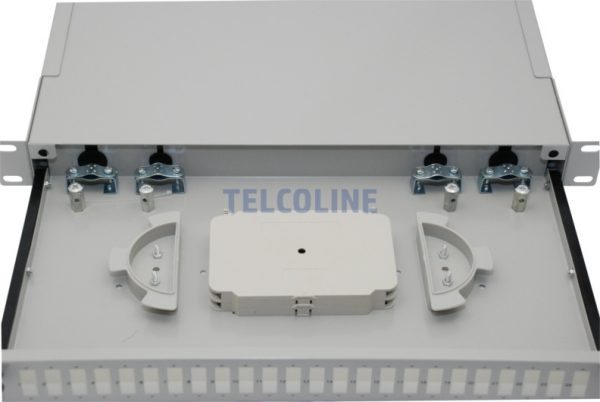

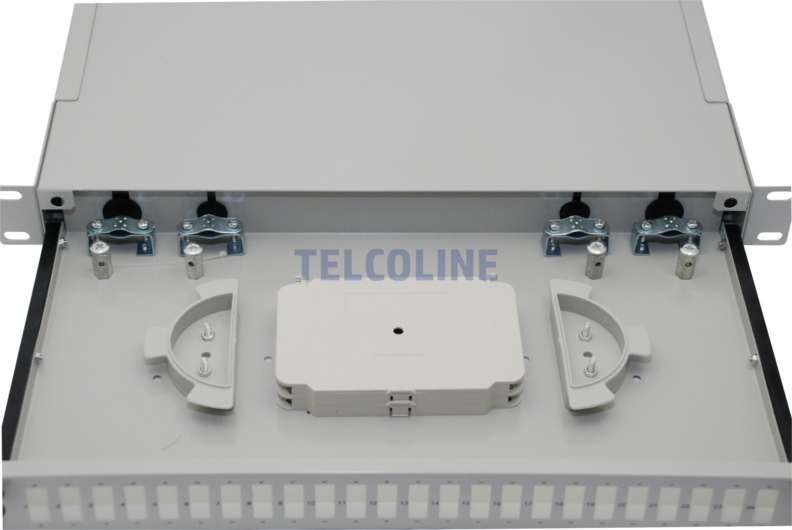

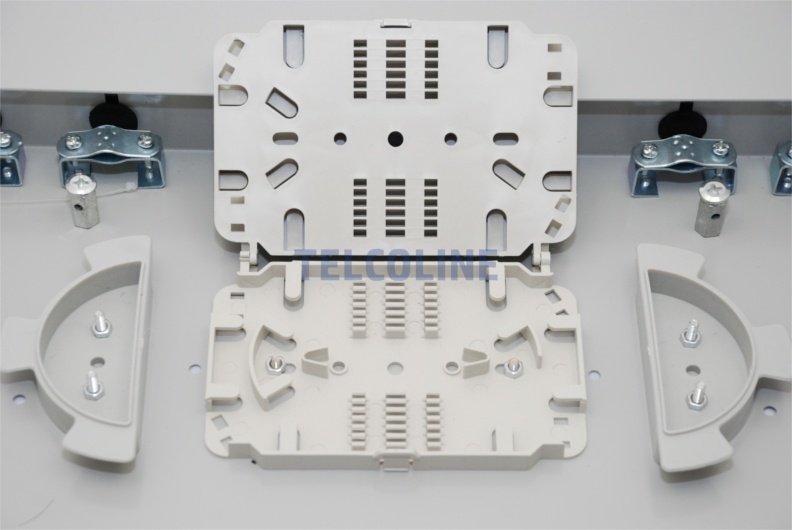

– Optical tray
– Cable gland: 2 x PG.13.5
– Splice covers : 48
– Mounting screws for adapters: 48
– Plastic clamps: 4

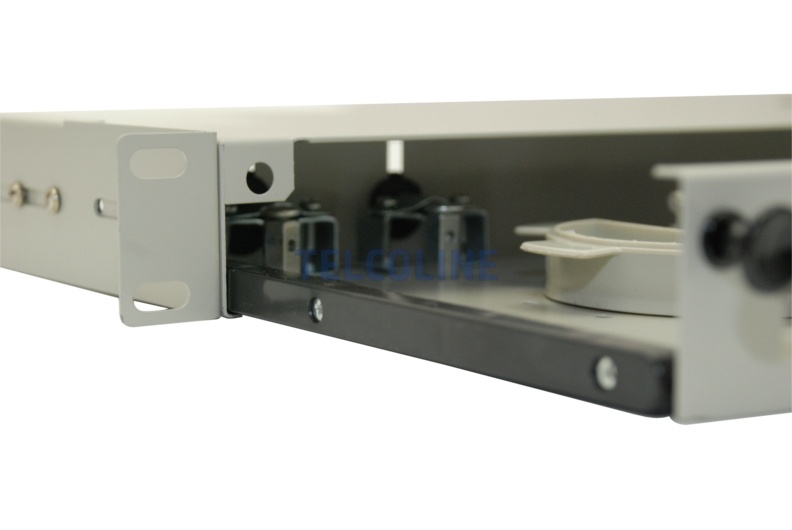

– Elements (pins) blocking the drawer’s extension: 2
