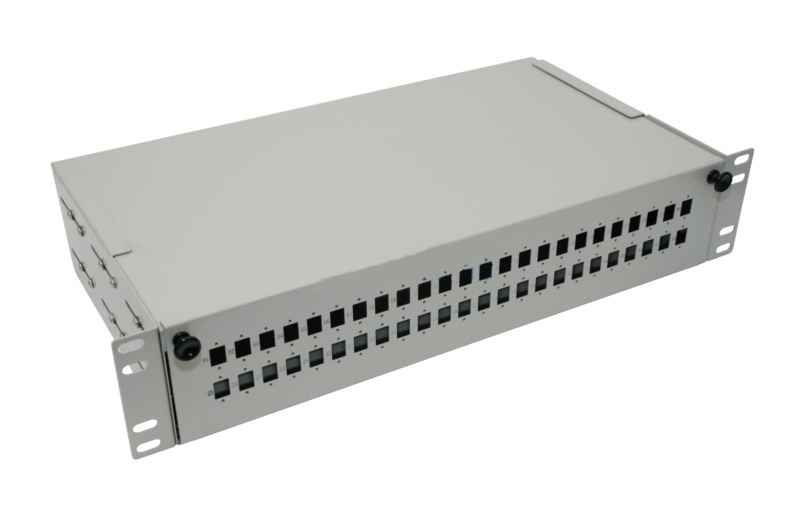

NFO Patch Panel 2U 19″ – 48x SC Simplex/LC Duplex, Pull-out, 2 trays

SKU: NFO-PAN-60013 Category:

Description

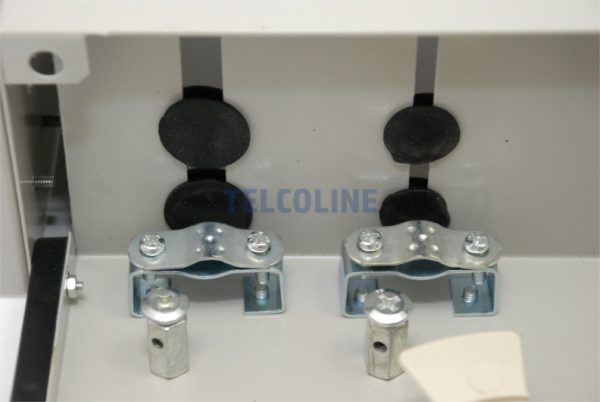

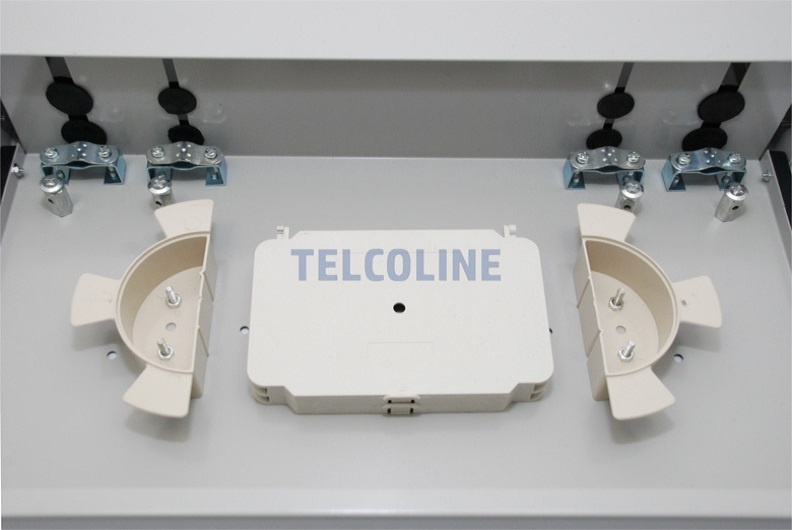

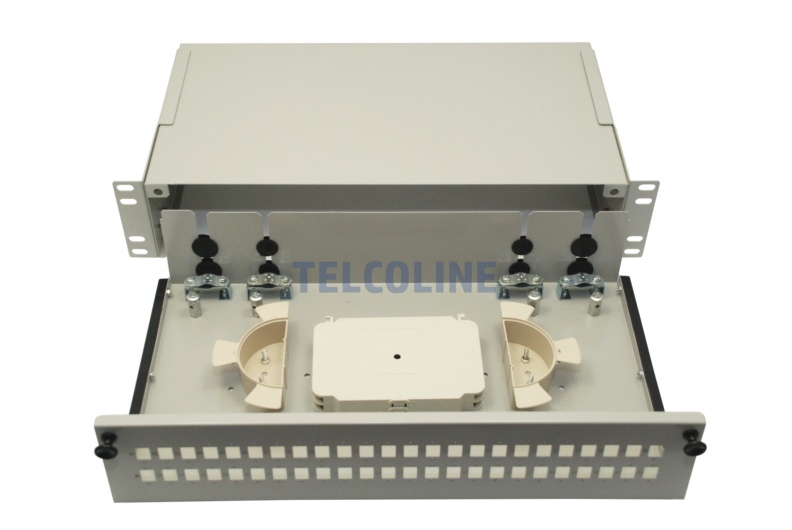

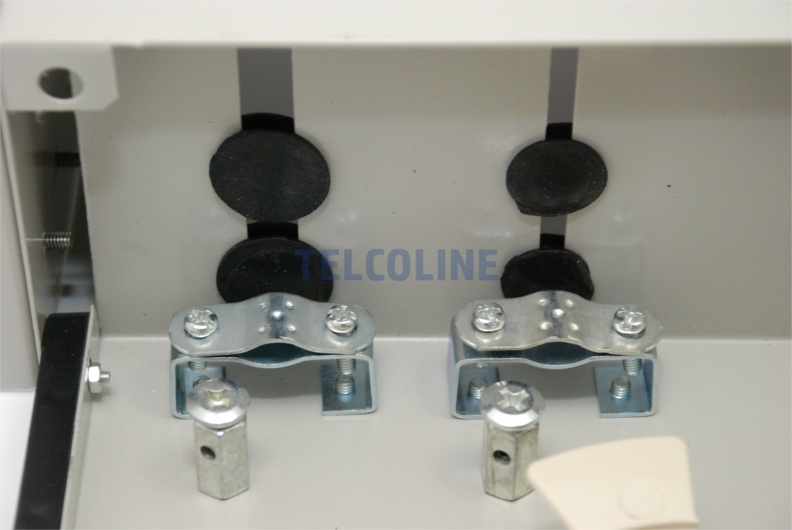

The TELCOLINE 48F – 19 “/ 2U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows the installation of 48 SC Simplex or LC Duplex adapters,equipped with a cable organizer and two fiber optic trays. 8 holes blinded with rubber gaskets, intended for the introduction and output of fiber optic cables.The switchboard is equipped with a removable and removable drawer allowing free access to the interior.The switchboard is universal and will be used in server rooms and telecommunications devices

Technical data:
– Weight: 3 kg

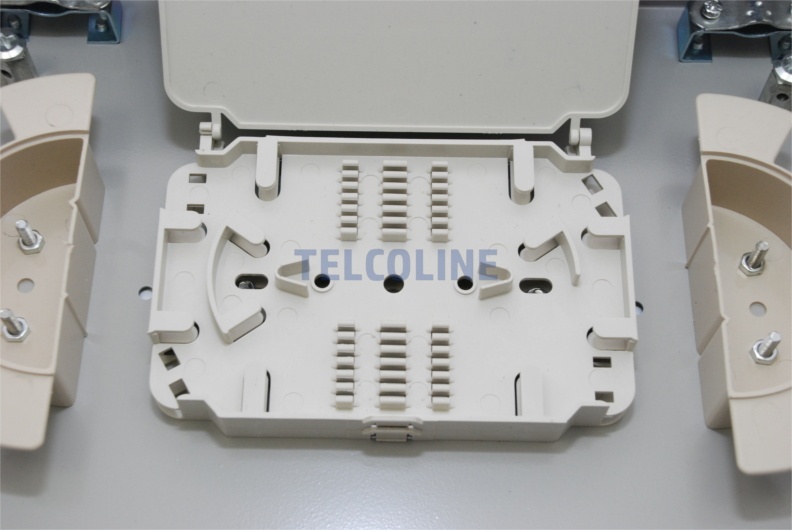

– Quantity trays: 2
– Trays capacity: 12/24 welds

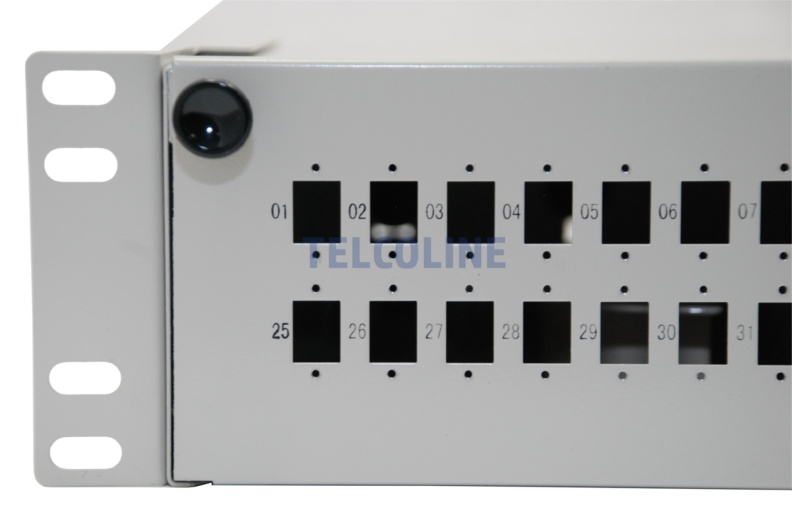

– Maximum number of adapters: 48 (SC Simplex, LC Duplex)
– Material: Cold-rolled steel – powder coated light gray
– Maximum number of trays: 6
– Dimensions: – Mounting height: 2U (88.9 mm)
                     – Depth: 250 mm
                     – Mounting method (length): 19 ” profile

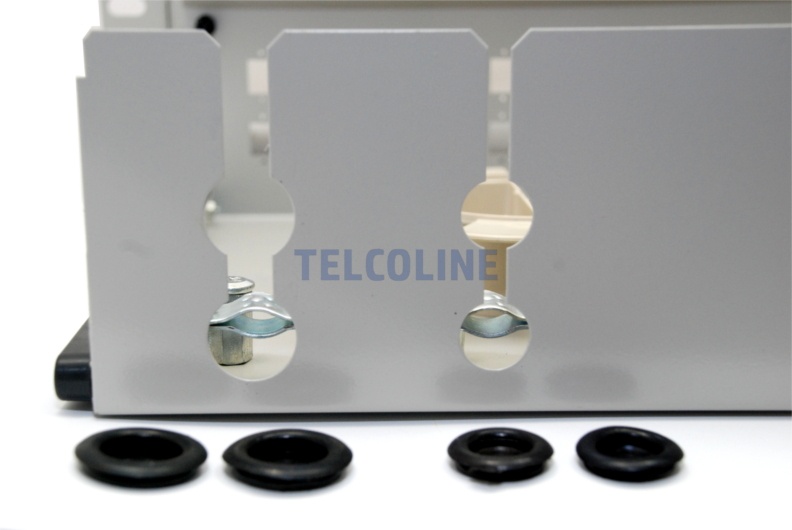

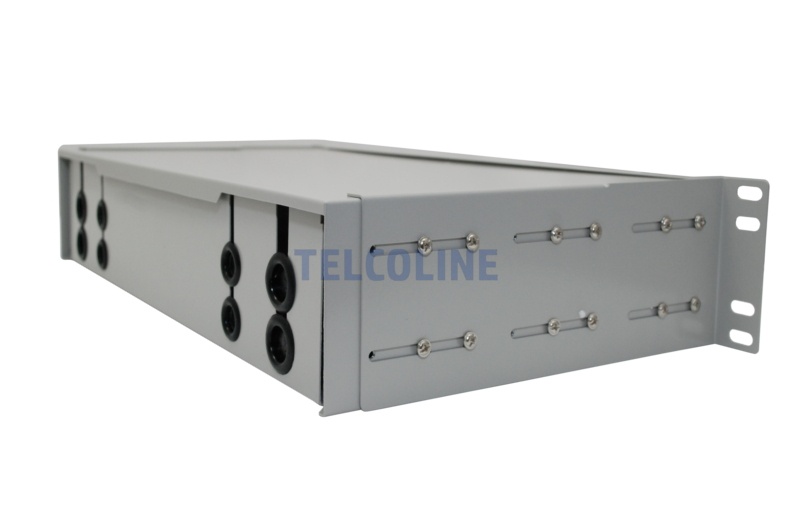

– Diameter of holes on back plate: 4×20 mm, 4×16 mm

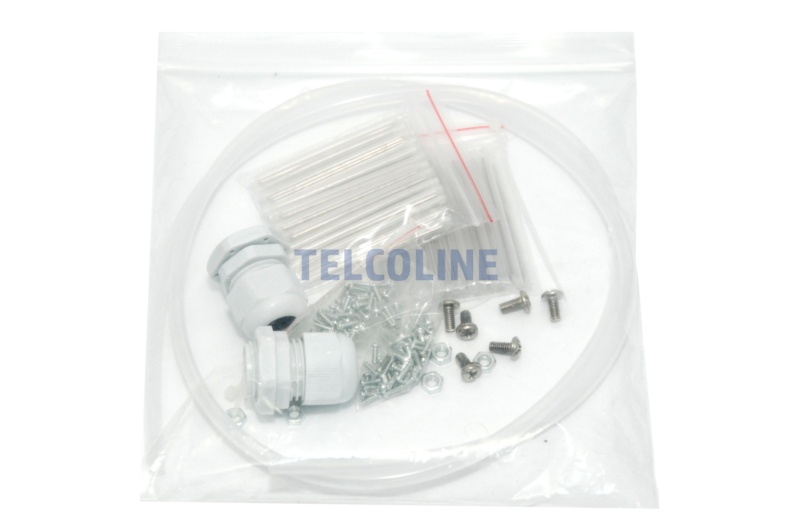

Supplied with:
– Two fiber optic trays
– Cable glands: 2 x PG.13.5
– Protective tube –  Splice covers
: 48
– Mounting screws for adapters: 96
– Plastic cable ties: 4
– Elements (pins) blocking the drawer’s extension: 2
