Description

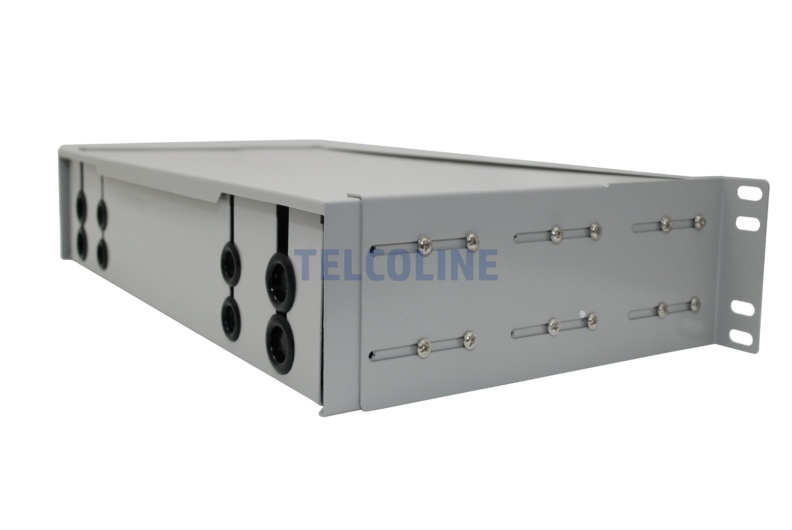

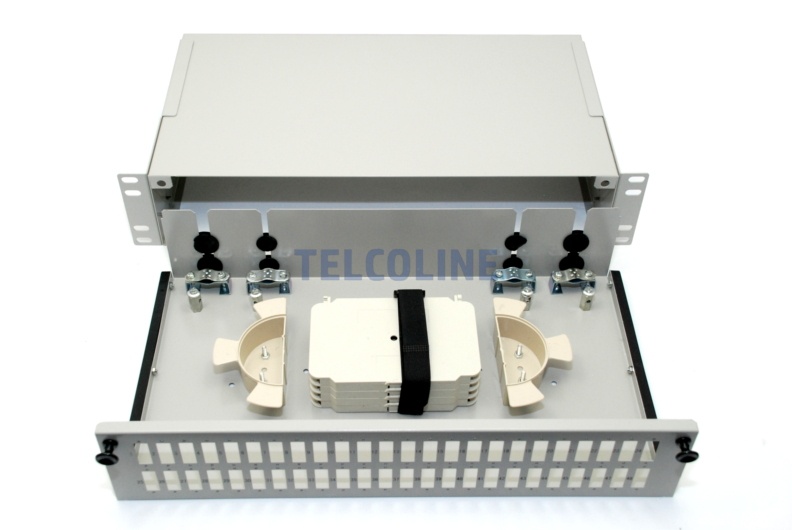

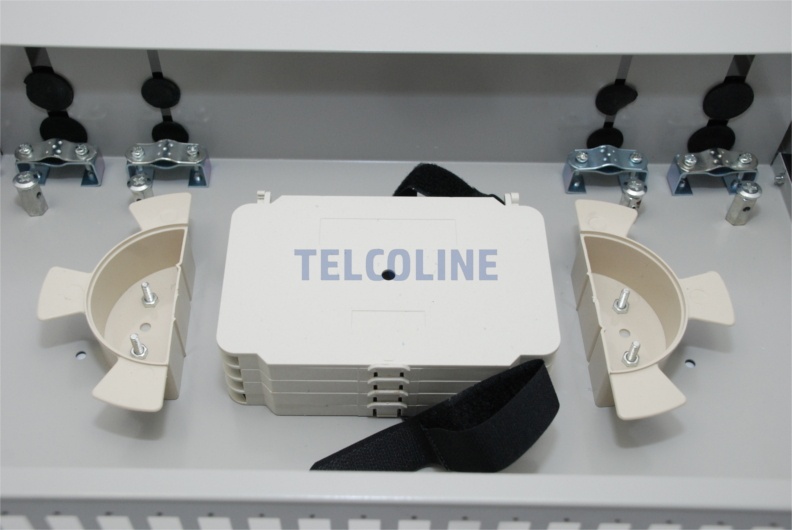

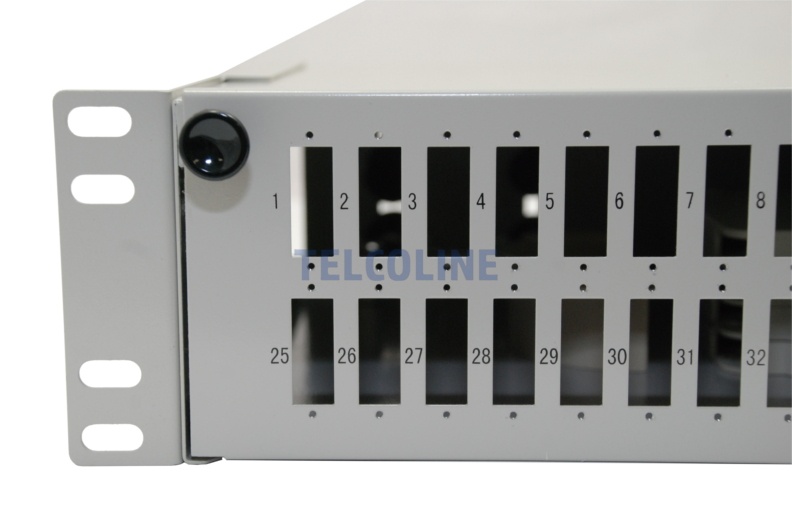

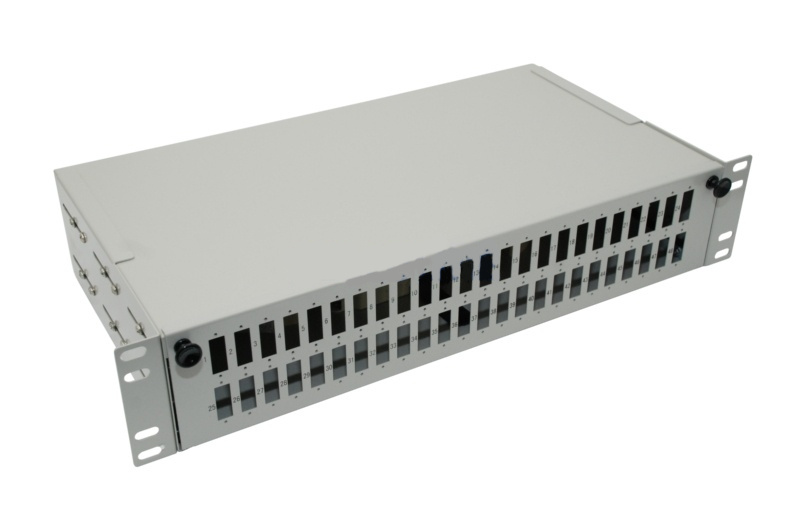

TELCOLINE 96F – 19 “/ 2U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows installation of 48 SC Duplex adapters, equipped with a cable organizer and four fiber optic trays, with 8 blind holes on the back The switchboard is equipped with a removable and removable drawer allowing easy access to the interior.The switchboard is universal and will be used in server rooms and telecommunications equipment

Technical data:
– Weight: 3 kg

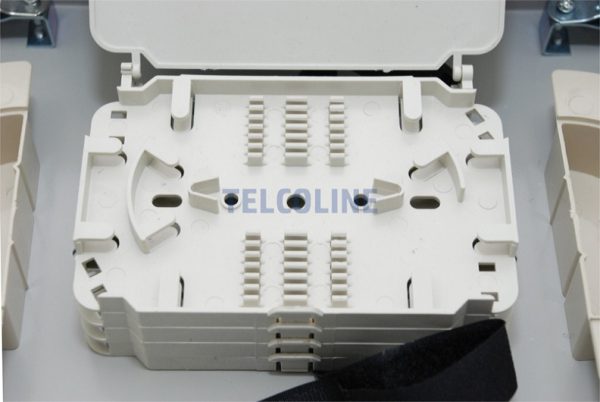

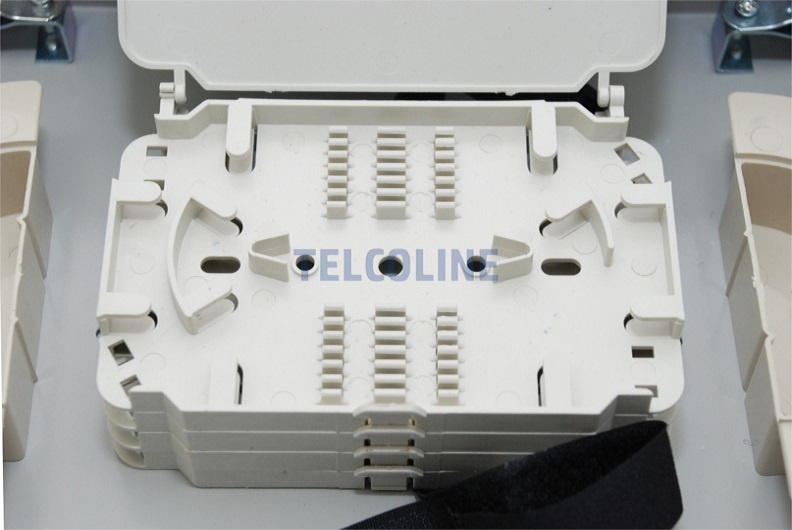

– Number of trays: 4
– Trays capacity: 12/24 welds
– Maximum number of adapters: 48 (SC Duplex)
– Material: Cold rolled steel – powder coated light gray
– Maximum number of trays: 6
– Dimensions: – Mounting height: 2U (88.9 mm)
                     – Depth: 250 mm
                     – Mounting method ( length): 19 ” profile

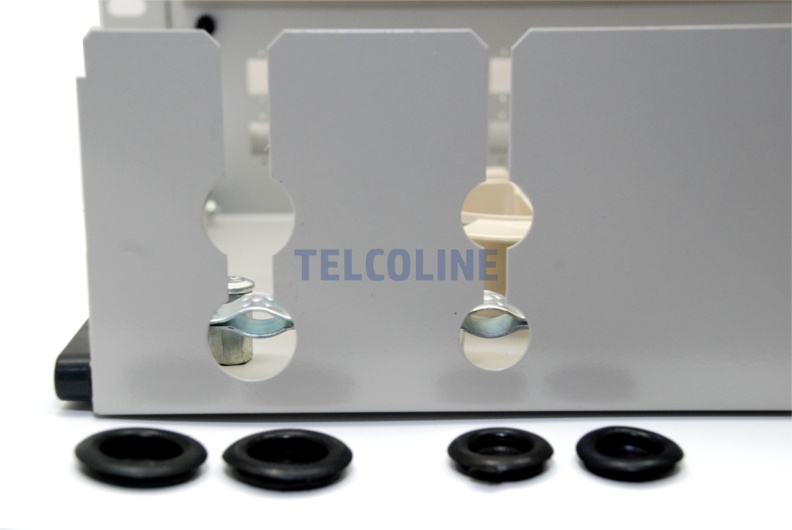

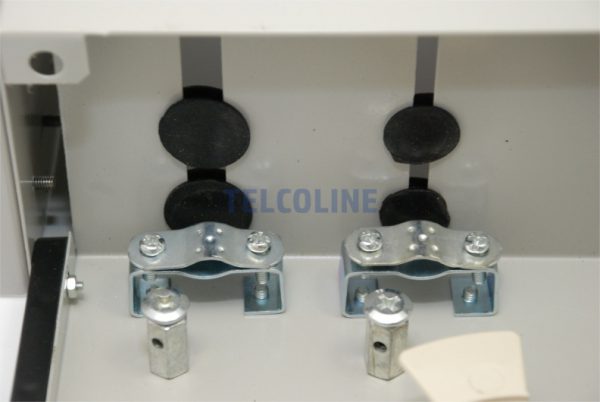

– Diameter of openings on back plate: 4×20 mm, 4×16 mm

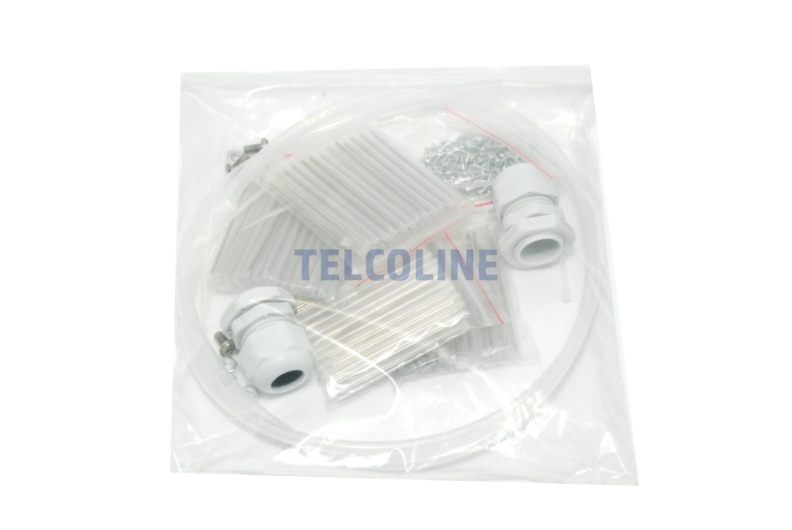

Supplied with:
– Two fiber optic trays

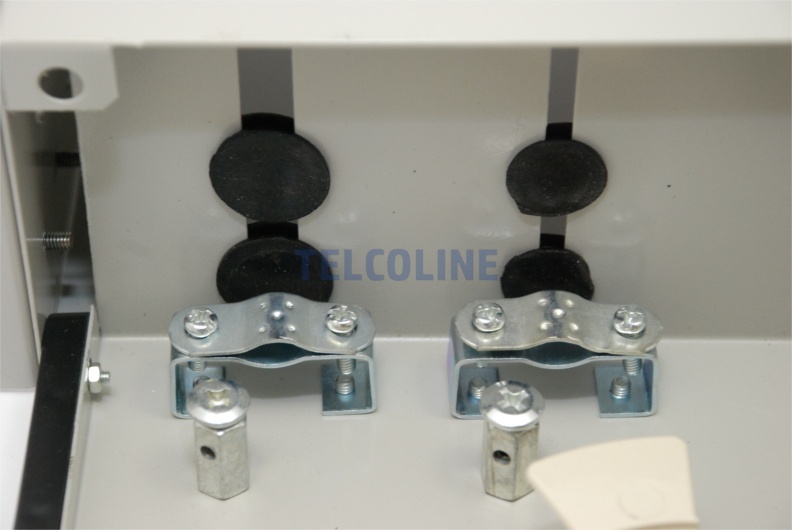

– Cable glands: 2 x PG.13.5
– Protective tube –  Splice covers
: 96
– Mounting screws for adapters: 96
– Plastic clamps: 4
– Elements (pins) blocking the drawer’s extension: 2
