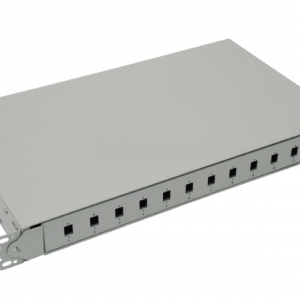

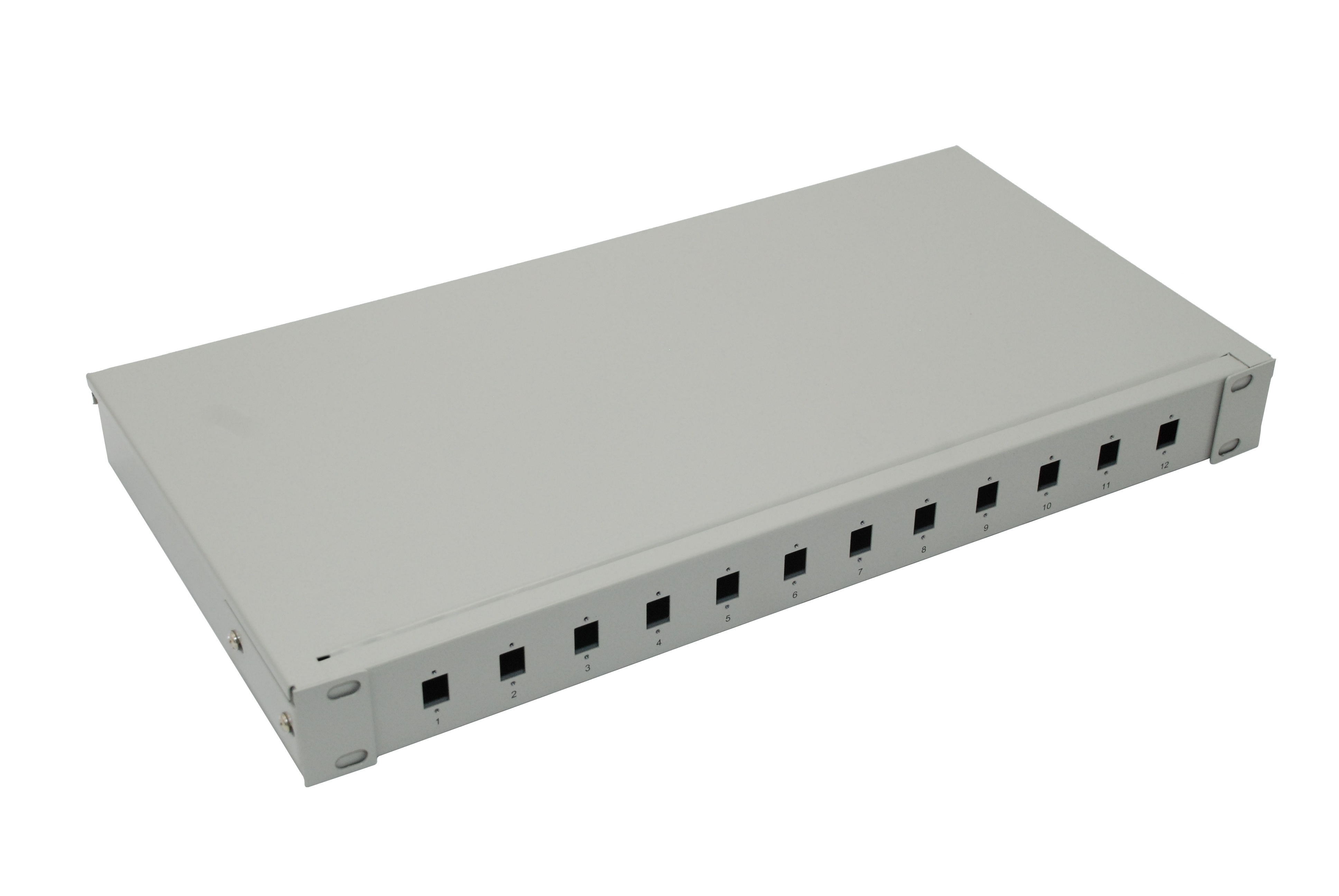

NFO Patch Panel 1U 19″ – 12 SC Simplex/LC Duplex, Closed, 1 cassette

Compare
SKU: NFO-PAN-60005 Category:

Description

The Telcoline 12F – 19 “/ 1U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows to install 12 SC Simplex or LC Duplex adapters, equipped with a cable organizer and a fiber  optic tray. openings for the introduction and output of fiber optic cables The access to the inside of the switchboard is possible after unscrewing the upper housing panel (2 screws) .The switch is universal and will be used in telecommunications equipment and server rooms

Technical data:
– Weight: 2 kg
– Number of trays: 1
– Tray capacity: 12/24 welds
– Maximum number of adapters: 12 (SC Simplex, LC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 3
– Dimensions: – Installation height: 1U (44.45 mm)
                     – Depth: 220 mm
                     – Mounting method (length): 19 “profile
– Diameter of holes on the back: 20 mm

Supplied with:
– Tray holder
– Cable gland: 2 x PG.13.5
– Splice covers : 12
– Mounting screws for adapters: 24
– Plastic cable ties: 4
