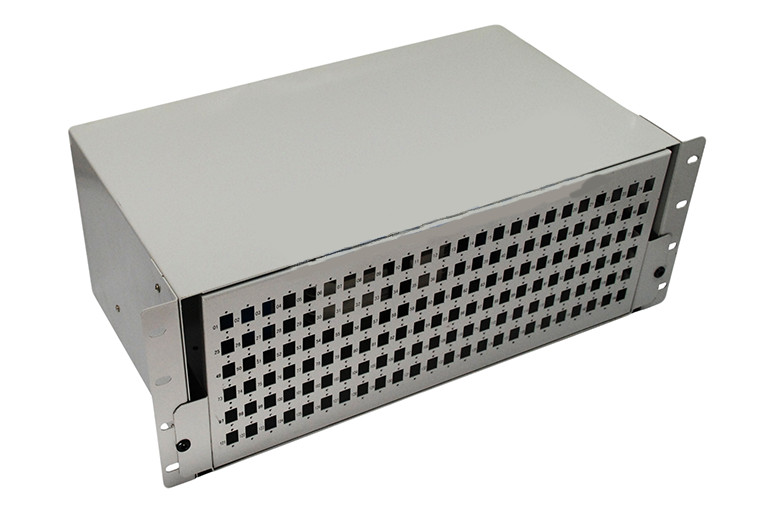

NFO Patch Panel 4U 19″ – 144x SC Simplex/LC Duplex, Slide-out on rails, 6 trays

NFO Patch Panel 4U 19″ – 144x SC Simplex/LC Duplex, Slide-out on rails, 6 trays

SKU: NFO-PAN-60016 Category:

Description

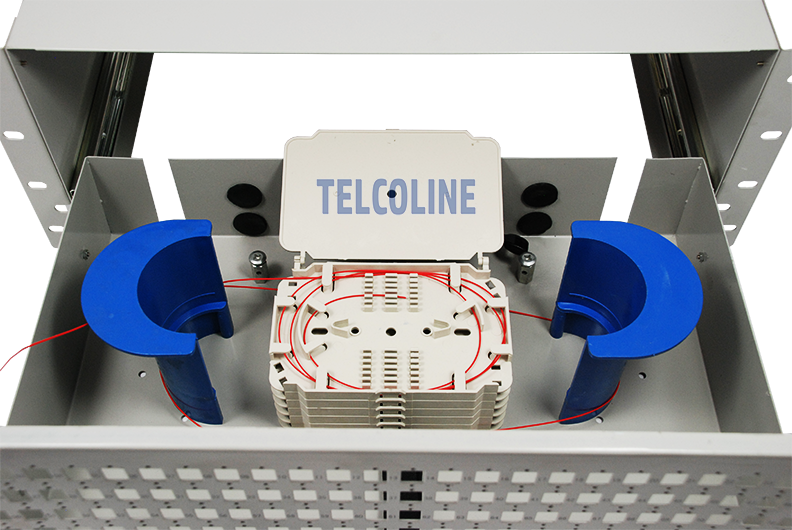

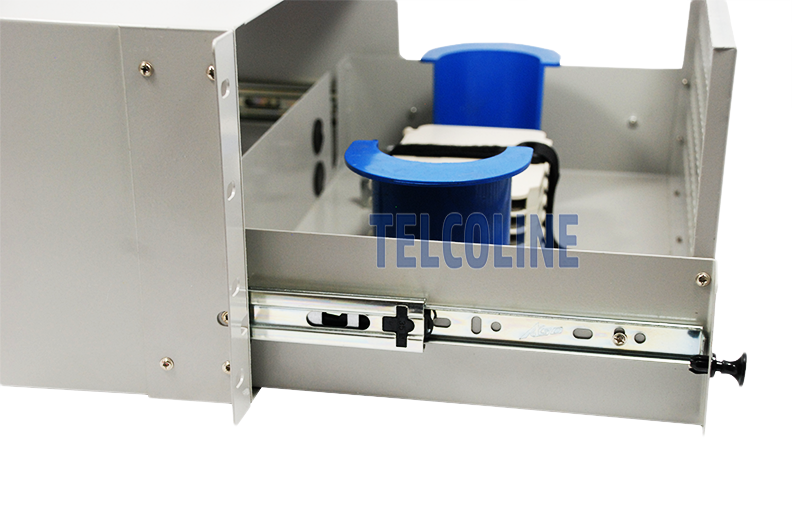

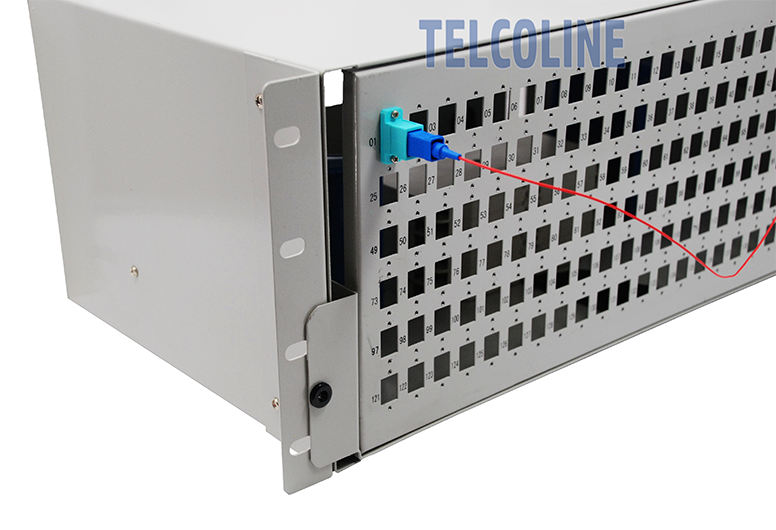

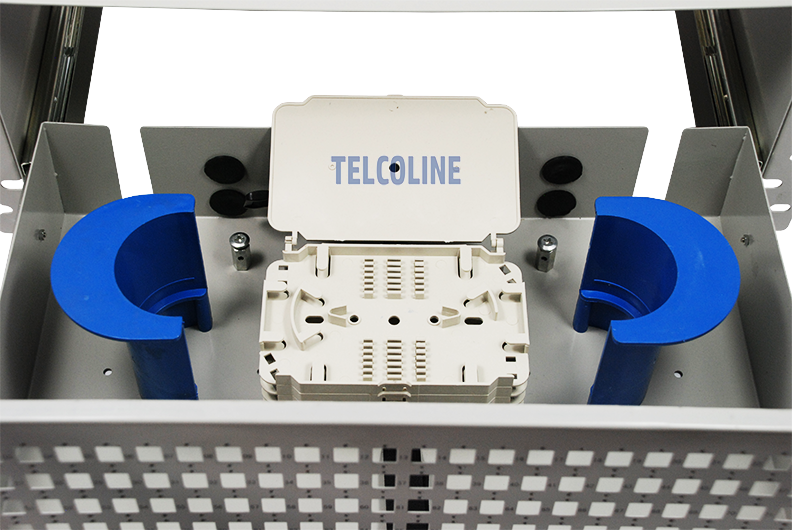

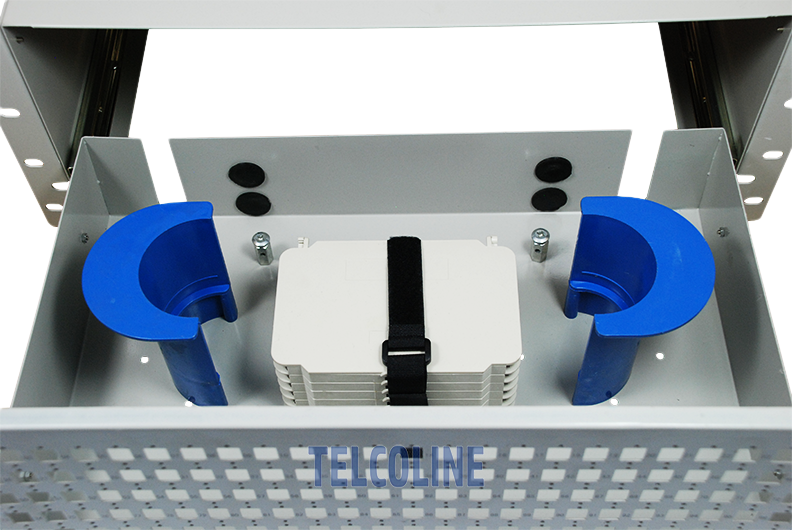

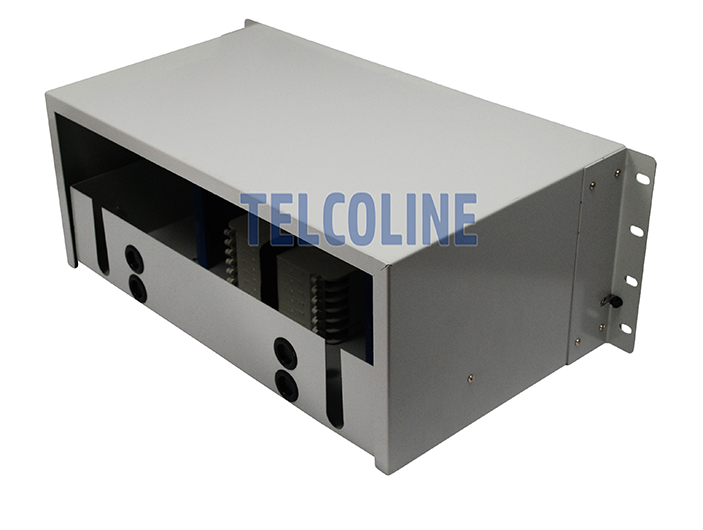

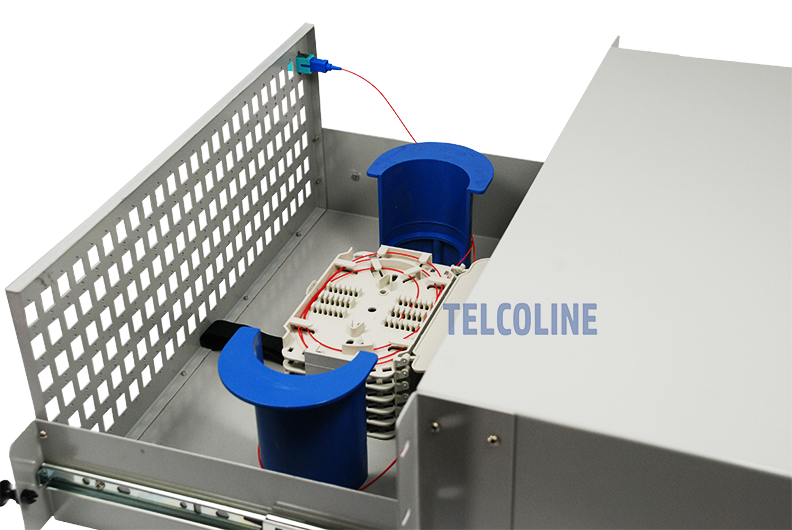

The TELCOLINE 144F – 19 “/ 4U fiber optic distribution box is  designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows installing 144  Simplex SC adapters, equipped with a cable organizer and  six  fiber optic trays. with rubber gaskets and 2 holes for PG.13.5 cable glands (with height adjustment) , intended for the introduction and output of fiber optic  cables The switchboard  is equipped with a drawer mounted on ball bearing slides that  allow free access to the inside or the housing.  the use of locking pins can block the drawer’s extension. Inside the switch there are six foldable welding trays, which can be  secured  with a band preventing opening. The switchgear is universal and will be used in server rooms and telecommunications devices.



Application:
• Server rooms
• Fiber optic distributions

Technical data:
• Weight: 3 kg
• Number of trays: 6
• Tray capacity: 12/24 welds
• Maximum number of adapters: 144 (SC Simplex)
• Maximum number of trays: 9
• Material: Rolled steel cold – powder painted light gray
• Dimensions: Installation height: 4U (177 mm), Depth: 250 mm, Mounting method (length): 19 ” profile

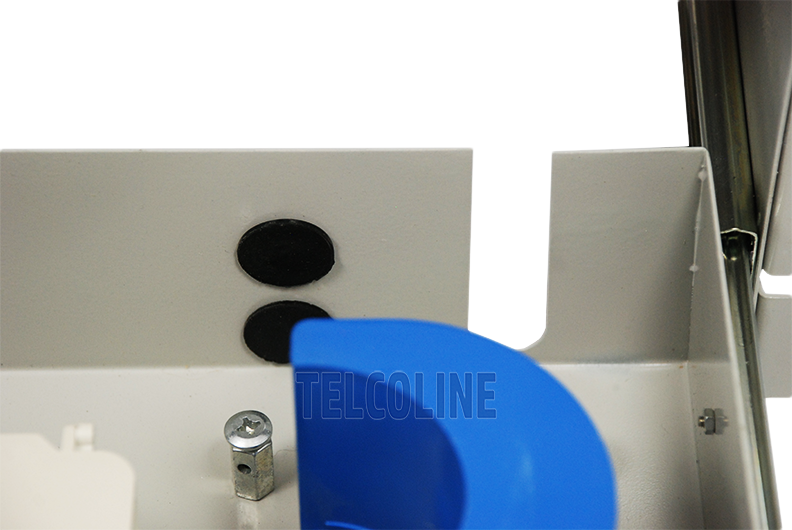

• Diameter of holes on the back plate: Rubber 4×16 mm, for Cable gland: 2 x PG.13.5

Set components:
• Six fiber optic trays
• Cable glands: 2 x PG.13.5
• Protective tube
• Mounting screws for adapters: 288 pcs
• Plastic cable ties: 6

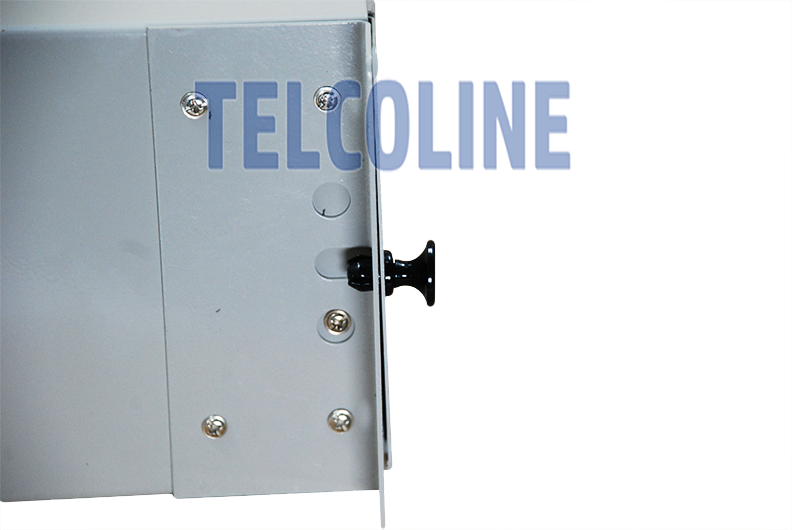

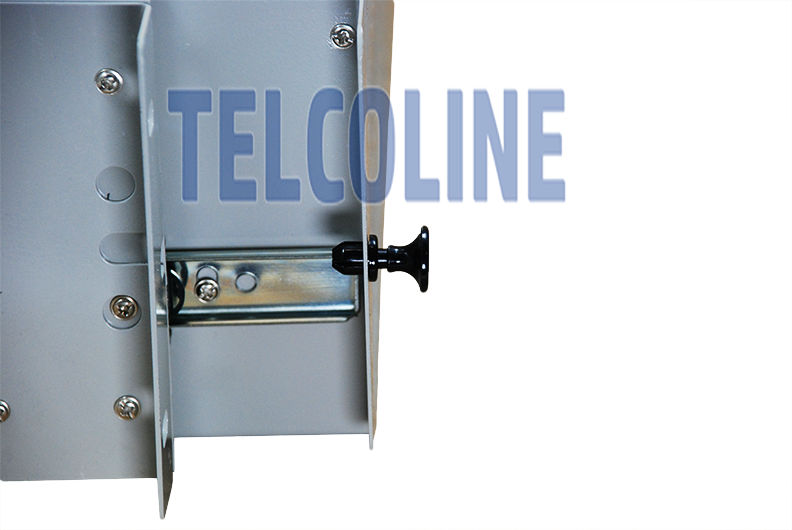

• Elements (pins) blocking the drawer’s extension: 2
• Spare screws: 4pcs
• Spare nuts: 2pcs
• Splice covers: 6 packages / 24pcs
