Cabinets 800x1000mm Black

NVT-FCABxxU-8010B

Compare

Description

NaviaTec Network Cabinets 800mm wide x 1000mm deep Black

Features:
19″ Network Equipment Mounting Rails
Cable Entry on the top cover and bottom panel
Adjustable Feet and Heavy Duty Casters
Side Panels Removeable

Color:
Black

Material:
SPCC Steel

Front Door: (type5)
High-density vented door;
slotted SW7 hexagon Air inlet openings
Lock with comfort handle:
Reversible right or left handed doors;
Turning angle is over 180 degreess;
Material: Sheet steel
Surface Finish: Powder coated

Back Door: (type4)
Steel with Hexagon holes
Small lock
Reversible right or left handed doors
Turning angle is over 180 degrees
Material: Sheet steel
Surface Finish: Powder Coated

Loading Capacity:
800kg

Assembly: Cabinet comes 1/3 assembled

Package Dimensions:
Carton width = cabinet width +40MM,
Carton depth = cabinet depth+40MM,
Carton height =cabinet height+90MM

Main Parts:

S/N Specification Qty Material Surface finish Remark
1 Front door 1 Powder coated see front door specs
2 Frame 2 SPCC t1.2 Powder coated
3 Top cover 1 SPCC t1.2 Powder coated
4 Rear door 1 Powder coated see back door specs
5 Mounting plate 6 SPCC t1.2 Powder coated 6pcs for over 33U
6 19″ rails 4 SPCC t2.0 Powder coated
7  Side panel 2 SPCC t1.2 Powder coated  –
 8  Bottom 1 SPCC t1.2 Powder coated  –
 9  2″ heavy duty catsor 4  –  –  –
 10  M12 adjustable feet 4  –  –  –
 11  M6 screws & nuts 40 Steel Color zinc  40pcs for over 33U
 12 Trox tooling 1 Steel Color zinc

Ordering Info:



Model No. RU Width Depth Height Packed in # boxes Usable Interior Depth
NVT-FCAB42U-8010B 42U 800 1000 2000 3  800mm



Optional Accessories Sold Seperate:



Model No. Description
NVT-SH-4872B Fixed Shelf 485 x 550 for 900-1000mm deep cabinet
NVT-SH-9010B 19″ network cabinet keyboard shelf for 900-1000mm deep cabinet
NVT-PDU001 19″ 1U 6-outlet power distribution unit (6x schuko)
NVT-PDU003 19″ 1U 7-outlet power distribution unit (4x schuko, 2x IEC C13)
NVT-PDU006 19″ 2U 15-outlet power distribution unit (15x schuko)
NVT-PDU008 19″ 1U 8-outlet power distribution unit (8x schuko)
NVT-PDU009 19″ 1U 8-outlet power distribution unit (6x schuko, 2x IEC C13)
NVT-PDU010 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(8x schuko)
NVT-PDU011 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(6x schuko, 2x IEC C13)
NVT-CABMNGT-1U5B 1U plastic cable management with 5 rings
NVT-CABMNGT-1UB 1U metal cable management with cover
NVT-CABMNGT-1UBB 1U cable management with brush
NVT-FAN-R4XB 4-fan roof unit
NVT-FAN-1U2X 1U 2-fans unit
NVT-FAN-2X+TCU 1U 2-fan with thermal control digital temp unit
NVT-FAN3U2X 3U 2-fans unit
NVT-BKT-10B L-Bracket for 1000mm deep cabinet
NVT-M6-549 M6 screw + caged nut
NVT-PNL1U-484B 19″ cabinet 1U blanking panel
NVT-PNL2U-488B 19″ cabinet 2U blanking panel
NVT-PNL3U-481B 19″ cabinet 3U blanking panel
NVT-PNL4U-481B 19″ cabinet 4U blanking panel
NVT-CAT6-UPP331 Cat6 24-port unshielded patch panel for 19″ wide cabinet
NVT-CAT6-SPP275 Cat6 24-port shielded patch panel for 19″ wide cabinet
NVT-CAT6-SPP330 Cat6 16-port shielded patch panel for 19″ wide cabinet
NVT-PNL1U-373B Cat6 24-port Blank patch panel for 19″ wide cabinet, NVT-JACK-372 sold seperate



Product documentation

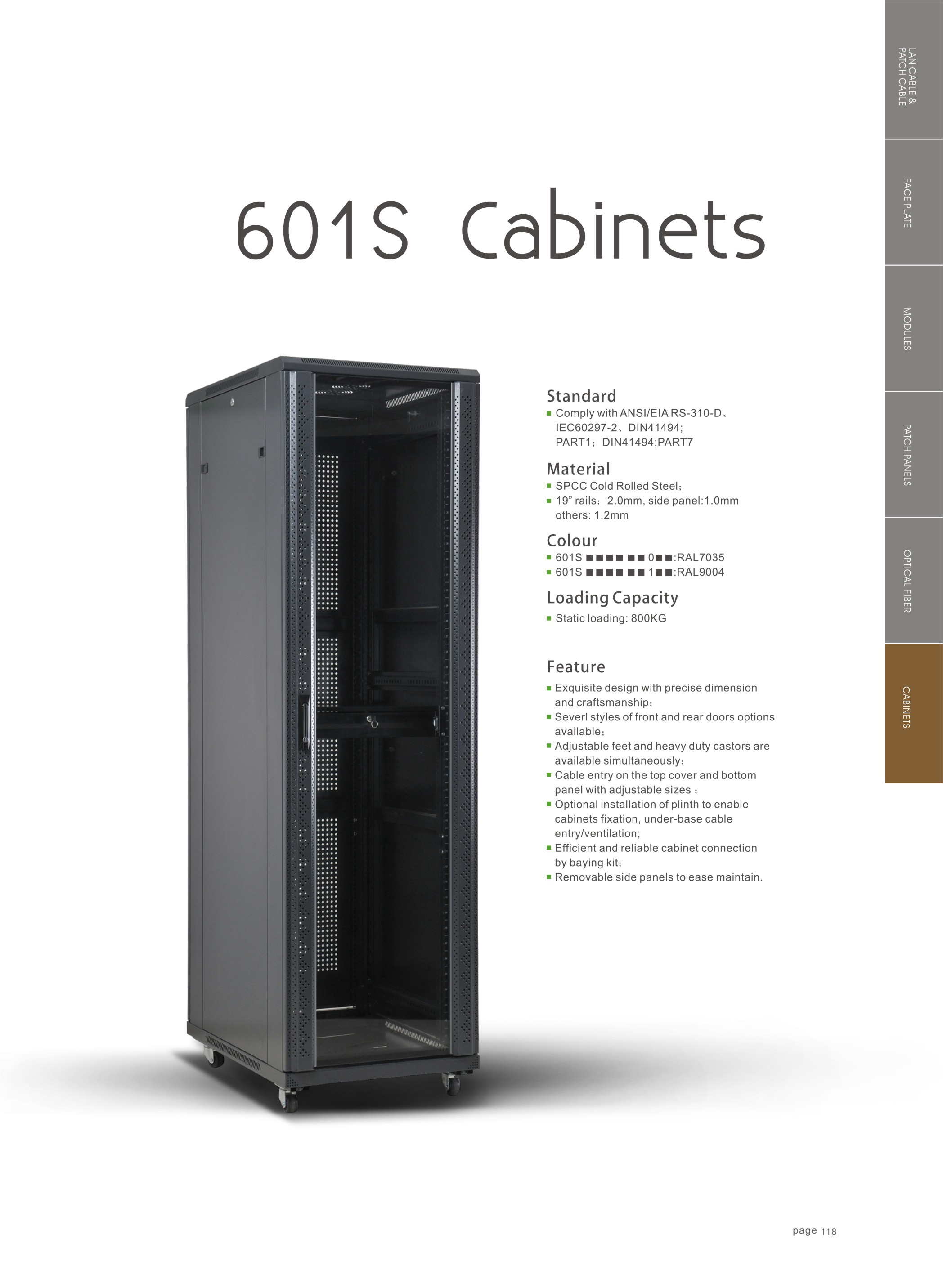

Cabinet Features

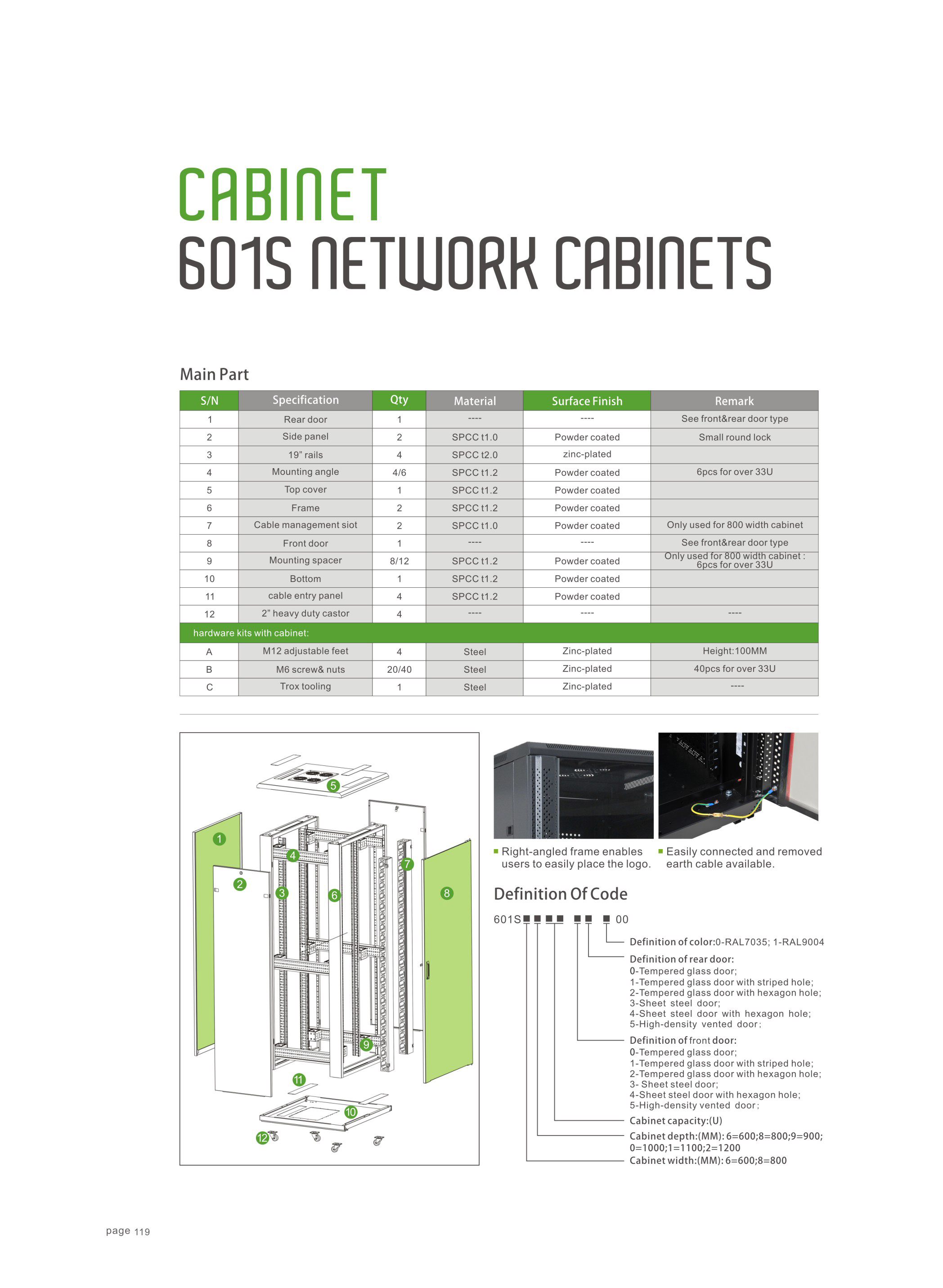

Parts

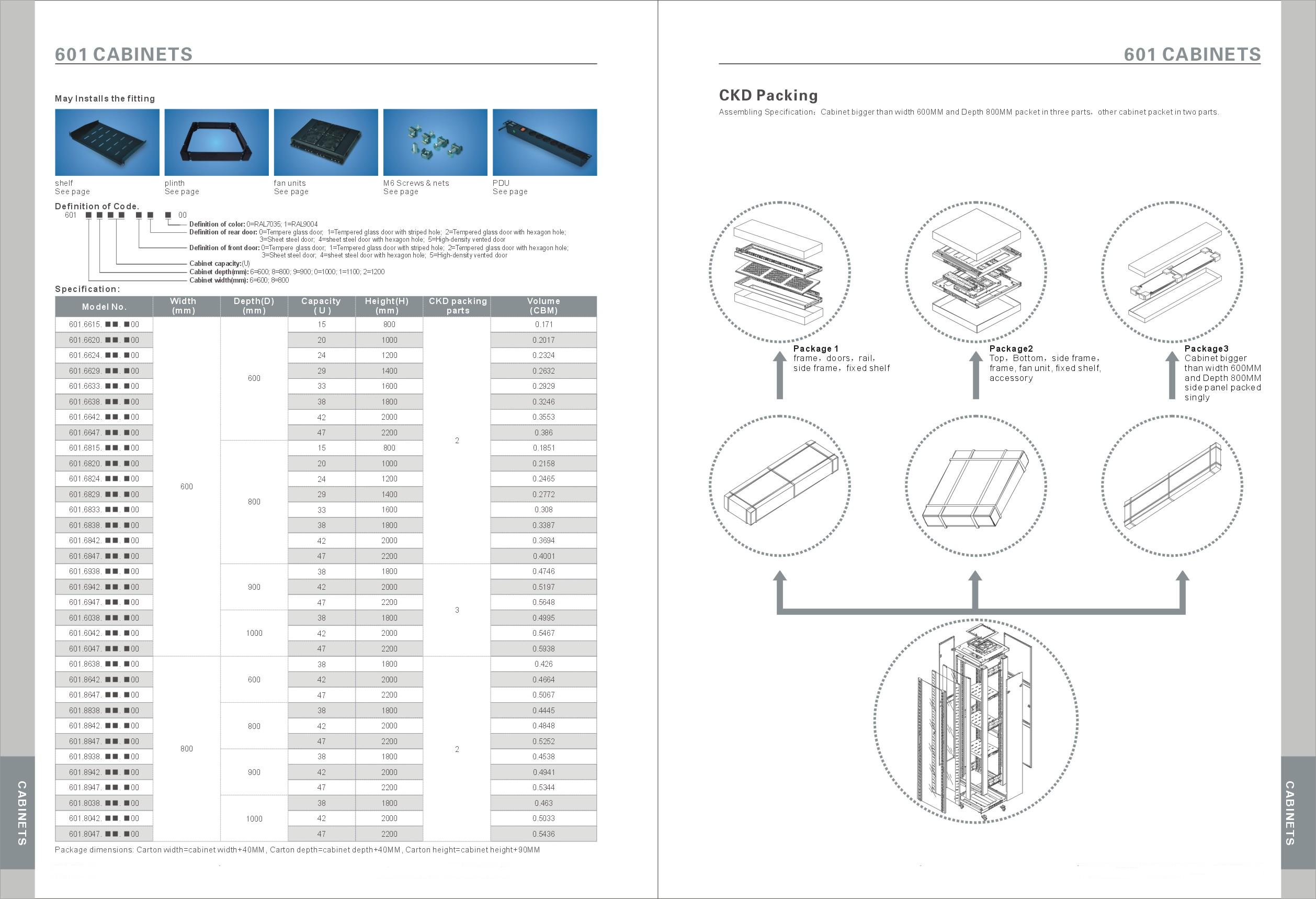

Spec Sheet
