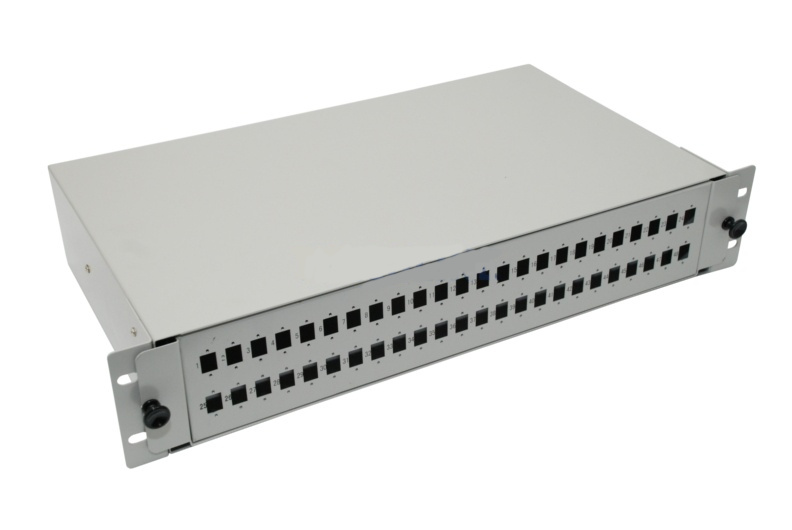

NFO Patch Panel 2U 19″ – 48x SC Simplex/LC Duplex, Slide-out on rails, 2 trays

Compare
SKU: NFO-PAN-60011 Category:

Description

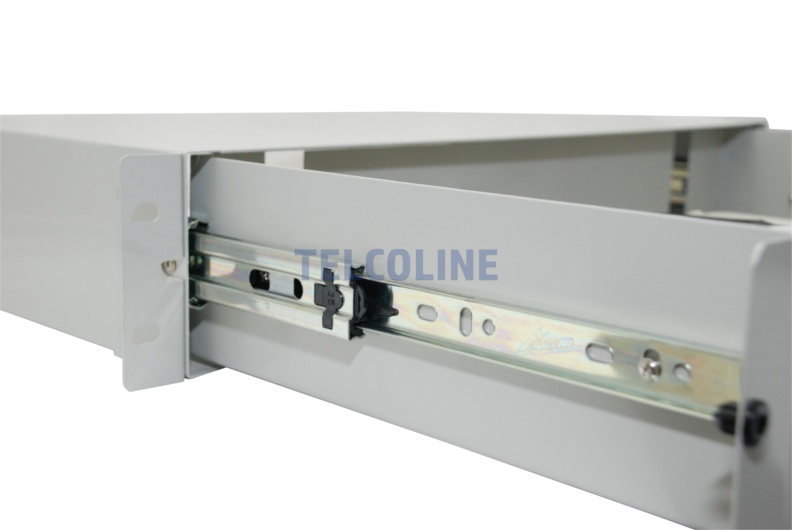

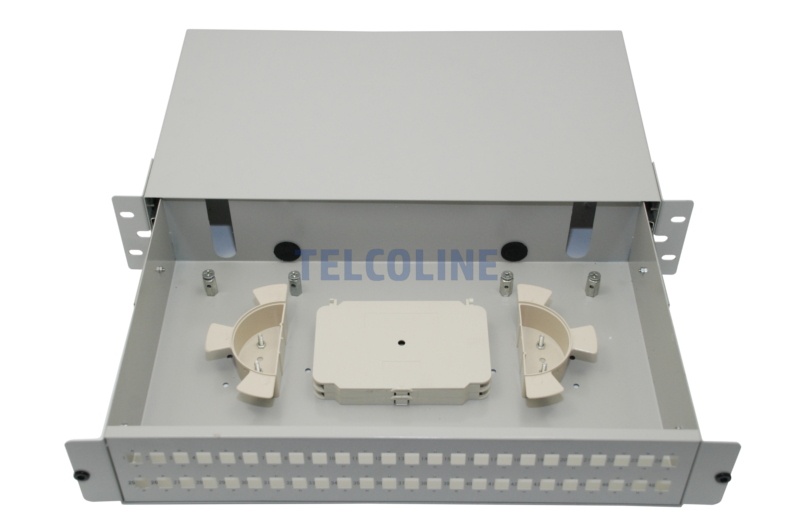

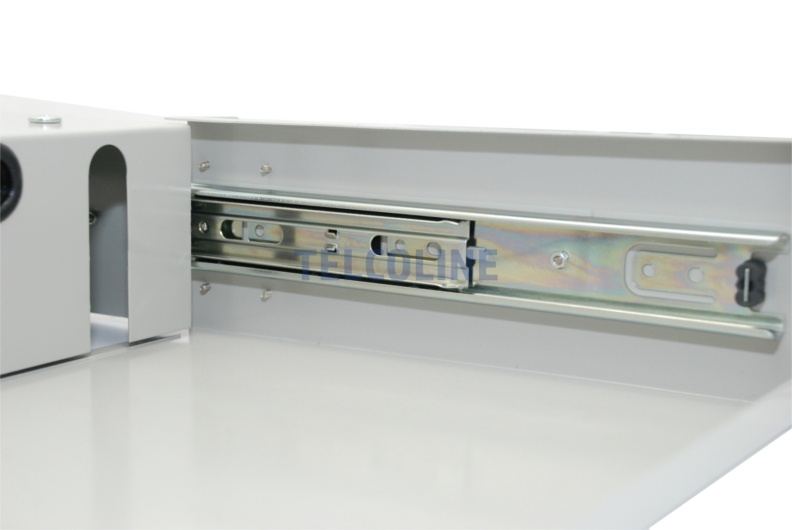

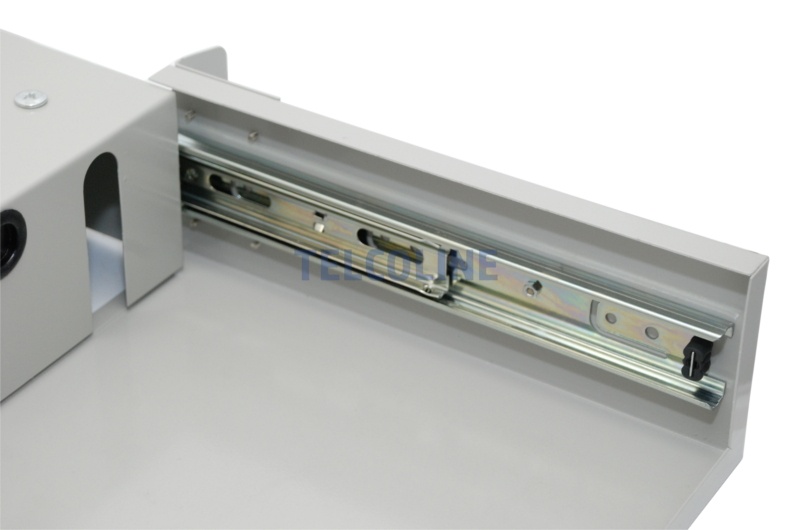

Telcoline 48F – 19 “/ 2U fiber optic distribution box is designed for mounting in 19 – inch data communication cabinets (standing, hanging), it allows to install 48 SC Simplex or LC Duplex adapters, equipped with a cable organizer and two fiber optic trays. 4 holes for the introduction and output of fiber optic cables The switchboard is equipped with a robust rail system allowing the drawer to be pulled out, allowing free access to the interior.The switchboard is universal and will be used in server rooms and telecommunications equipment

Technical data:
– Weight: 3 kg

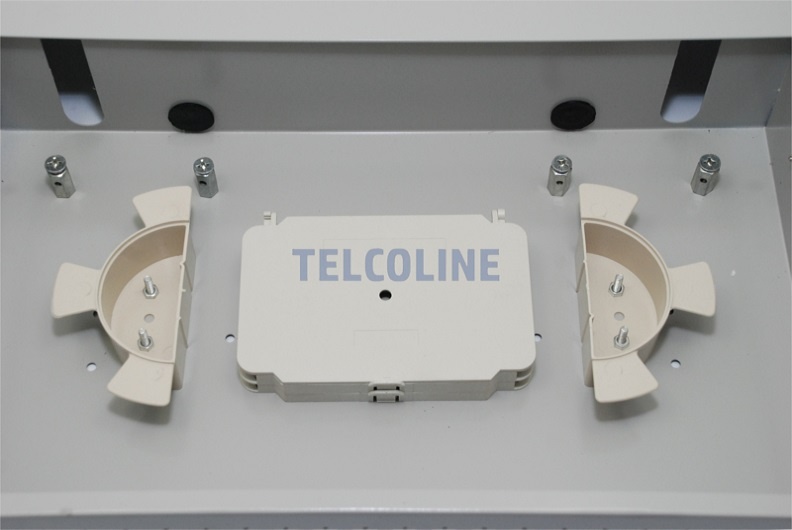

– Quantity trays: 2

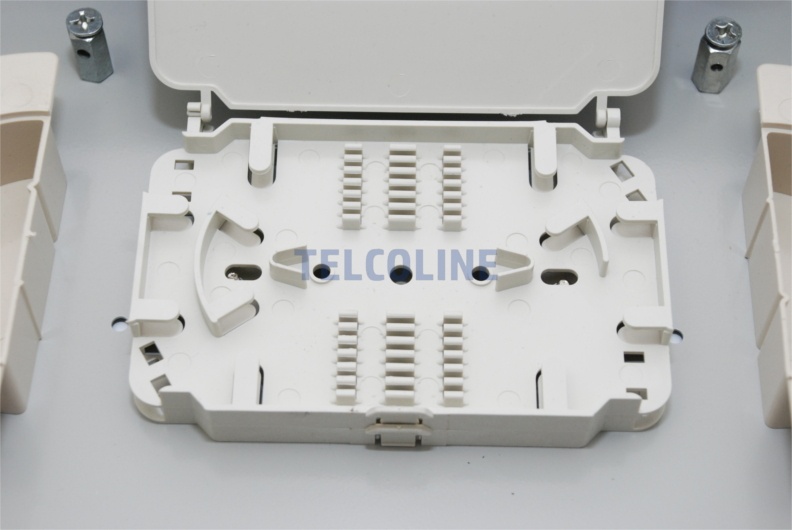

– Trays capacity: 12/24 welds

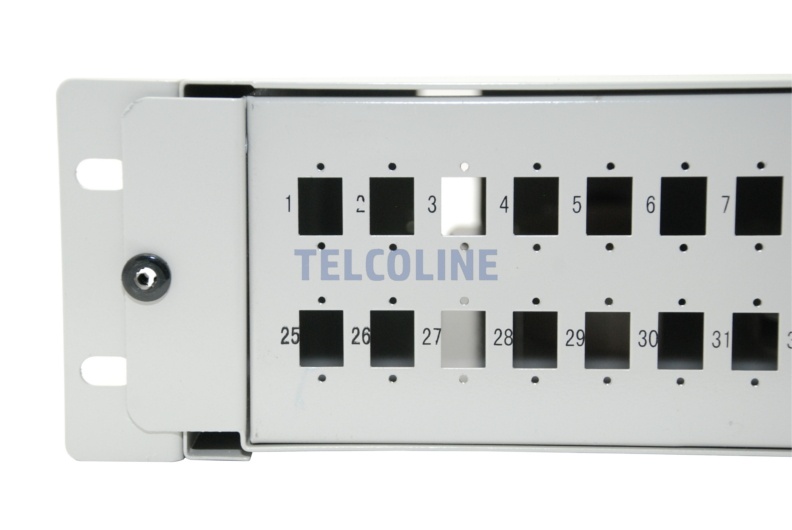

– Maximum number of adapters: 48 (SC Simplex, LC Duplex)
– Material: Cold-rolled steel – powder painted in light gray
– Maximum number of trays: 6
– Dimensions: – Mounting height: 2U (88.9 mm)
                     – Depth: 250 mm
                     – Mounting method (length): 19 ” profile

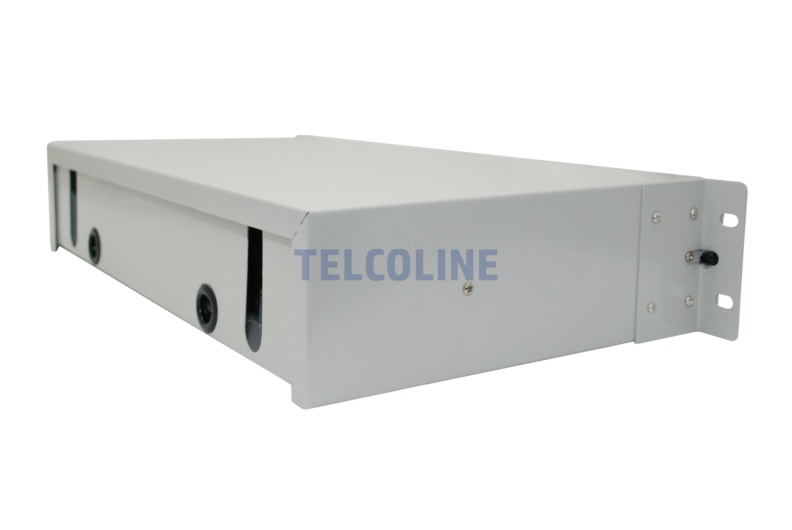

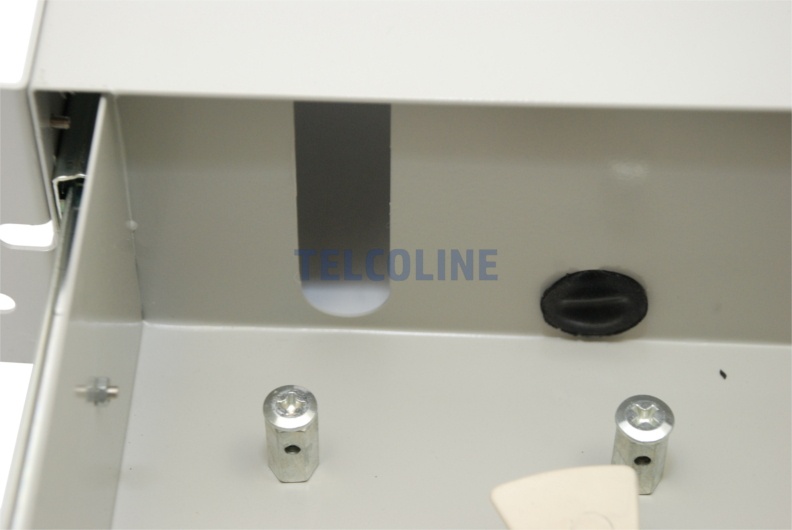

– Diameter of holes on back plate: 20 mm

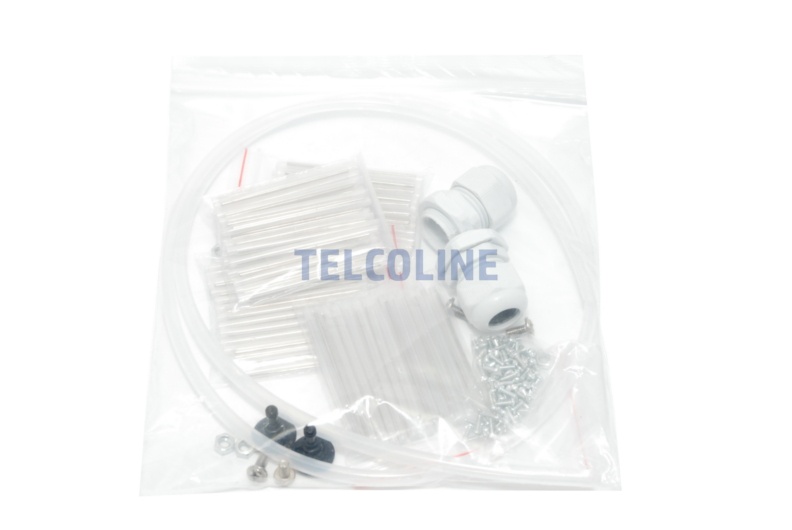

Supplied with:
– Two fiber optic trays
– Cable gland: 2 x PG.13.5
– Splice covers : 48
– Mounting screws for adapters: 96
– Plastic cable ties: 4
– Elements (bolts) blocking the extension: 2
