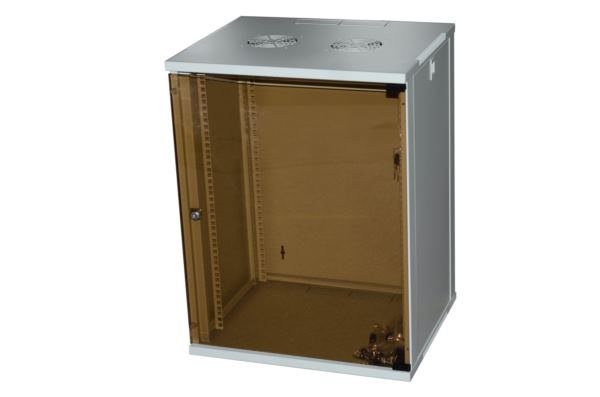

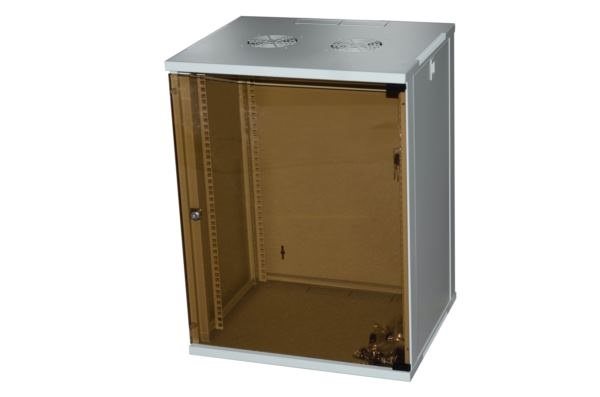

NaviaTec SQ Series
Feature:
• Welded Frame, reliable structure
• Standing or wall mounting installation
• Easy mounting installation
• 19″ standard installation
• Removeable Side Panels
• Cable entry on both top cover and bottom panel
• 120mm fan available: must be purchase seperate
• Turning angle of front door is over 180 degrees
Standard:
Comply with ANSI/EIA RS-310-D, IEC60297-2, DIN41494-Part1, DIN41494, Part7
Material:
SPCC Cold Rolled Steel
Thickness: 19″ rails: 1.2mm
others: 1.2mm
Color
Beige
Loading Capacity:
Static loading: 50KG
Specification:
Heights Available: 6U, 9U, 12U, 15U, 20U, 25U
Main Parts:
| S/N | Specification | Qty | Material | Surface finish | Remark |
| 1 | Frame | 1 | SPCC t1.0 | Powder coated | – |
| 2 | Side panel | 2 | SPCC t1.0 | Powder coated | – |
| 3 | Front door | 1 | 5MM toughed glass | Powder coated | Small lock |
| 4 | 19″ rails | 4 | SPCCt1.5 | Powder coated | – |
| 5 | M6 screws and nuts | 10 | Steel | Color zinc | 20pcs for over 12U |
| 6 | Trox tooling | 1 | Steel | Black | – |
Ordering Info:
| Model No. | U | Width | Depth | Height | Packing dimension | EAN Code | Usable Interior Depth |
| NVT-WCAB6U-S5445G | 6U | 540 | 450 | 315 | 560*470*330 12,5 kg |
3856016515567 | 365mm |
| NVT-WCAB6U-S5460G | 6U | 540 | 600 | 315 | 560*620*330 15 kg |
3856016515611 | 515mm |
| NVT-WCAB9U-S5445G | 9U | 540 | 450 | 450 | 560*470*470 15,5 kg |
3856016515574 | 365mm |
| NVT-WCAB9U-S5460G | 9U | 540 | 600 | 450 | 560*620*655 17 kg |
3856016515628 | 515mm |
| NVT-WCAB12U-S5445G | 12U | 540 | 450 | 580 | 560*470*600 19 kg |
3856016515581 | 365mm |
| NVT-WCAB12U-S5460G | 12U | 540 | 600 | 580 | 560*620*600 21,5 |
3856016515635 | 515mm |
| NVT-WCAB15U-S5445G | 15U | 540 | 450 | 715 | 560*470*730 | 3856016515598 | 365mm |
| NVT-WCAB15U-S5460G | 15U | 540 | 600 | 715 | 560*620*730 | 3856016515642 | 515mm |
| NVT-WCAB20U-S5445G | 20U | 540 | 450 | 935 | 560*470*950 | 3856016515604 | 365mm |
| NVT-WCAB20U-S5460G | 20U | 540 | 600 | 935 | 560*620*950 | 3856016515659 | 515mm |
| NVT-WCAB25U-S5460G | 25U | 540 | 600 | 1160 | 560*620*1180 | 3856016515666 | 515mm |
Optional Accessories Sold Seperate:
| Model No. | Description |
| NVT-SH-4830G | Fixed Shelf 485 x 300 for 450mm deep wall cabinet |
| NVT-SH-4845G | Fixed Shelf 485 x 450 for 600mm deep wall cabinet |
| NVT-SH-CL4825G-1U | Cantilever Shelf 250mm deep 1U Capacity 10kg |
| NVT-SH-CL4830G-2U | Cantilever Shelf 300mm deep 2U Capacity 22kg |
| NVT-SH-CL4835G-2U | Cantilever Shelf 355mm deep 2U Capacity 22kg |
| NVT-SH-CL4840G-2U | Cantilever Shelf 400mm deep 2U Capacity 22kg |
| NVT-SH-CL4840G-3U | Cantilever Shelf 400mm deep 3U Capacity 36,3kg |
| NVT-SH-CL4845G-2U | Cantilever Shelf 457mm deep 2U Capacity 22kg |
| NVT-SH-CL4845G-3U | Cantilever Shelf 457mm deep 3U Capacity 36,3kg |
| NVT-PDU001 | 19″ 1U 6-outlet power distribution unit (6x schuko) |
| NVT-PDU003 | 19″ 1U 7-outlet power distribution unit (4x schuko, 2x IEC C13) |
| NVT-PDU006 | 19″ 2U 15-outlet power distribution unit (15x schuko) |
| NVT-PDU008 | 19″ 1U 8-outlet power distribution unit (8x schuko) |
| NVT-PDU009 | 19″ 1U 8-outlet power distribution unit (6x schuko, 2x IEC C13) |
| NVT-PDU010 | 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(8x schuko) |
| NVT-PDU011 | 19″ 1U 8-outlet power distribution unit with IEC320 C14 input connector(6x schuko, 2x IEC C13) |
| NVT-CABMNGT-1U5B | 1U plastic cable management with 5 rings |
| NVT-CABMNGT-1UB | 1U metal cable management with cover |
| NVT-CABMNGT-1UBB | 1U cable management with brush |
| NVT-FAN-1X | One cooling fan with 2m power cable |
| NVT-FAN-2X | Two cooling fans with 2m power cable |
| NVT-FAN-1U2X | 1U 2-fans unit |
| NVT-FAN-2X+TCU | 1U 2-fan with thermal control digital temp unit |
| NVT-FAN3U2X | 3U 2-fans unit |
| NVT-BKT-45B | L-Bracket for 450mm deep cabinet |
| NVT-BKT-66B | L-Bracket for 600mm deep cabinet |
| NVT-M6-549 | M6 screw + caged nut |
| NVT-PN1U-484B | 1U blanking panel for 19″ cabinet |
| NVT-PN2U-488B | 2U blanking panel for 19″ cabinet |
| NVT-PNL3U-481B | 3U blanking panel for 19″ cabinet |
| NVT-PNL4U-481B | 4U blanking panel for 19″ cabinet |
| NVT-CAT6-UPP331 | Cat6 24-port unshielded patch panel for 19″ wide cabinet |
| NVT-CAT6-SPP275 | Cat6 24-port shielded patch panel for 19″ wide cabinet |
| NVT-CAT6-SPP330 | Cat6 16-port shielded patch panel for 19″ wide cabinet |
| NVT-PNL1U-373B | Cat6 24-port Blank patch panel for 19″ wide cabinet, NVT-JACK-372 sold seperate |
